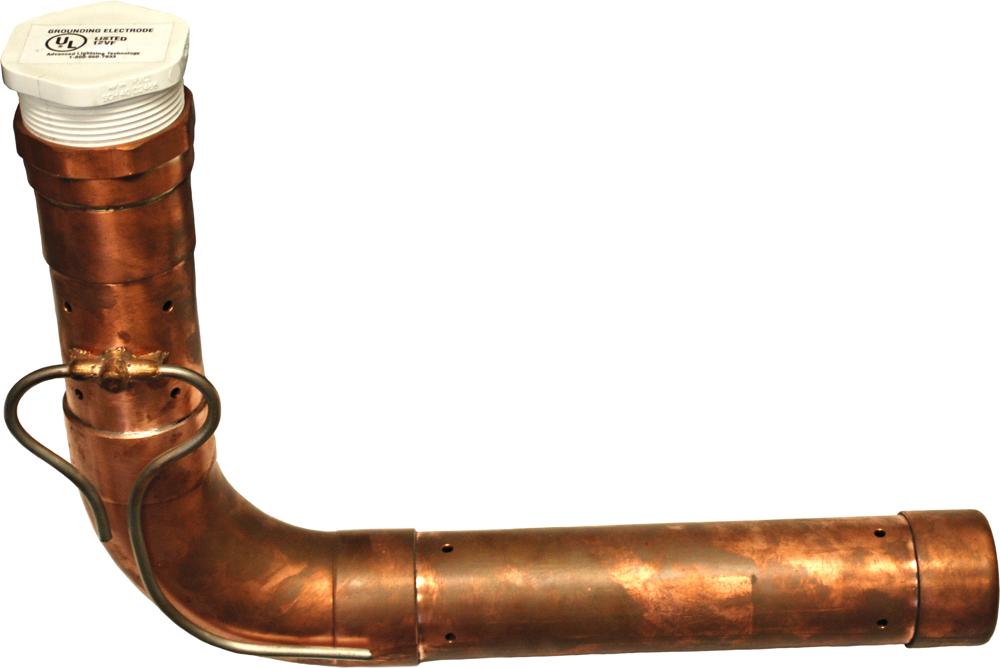

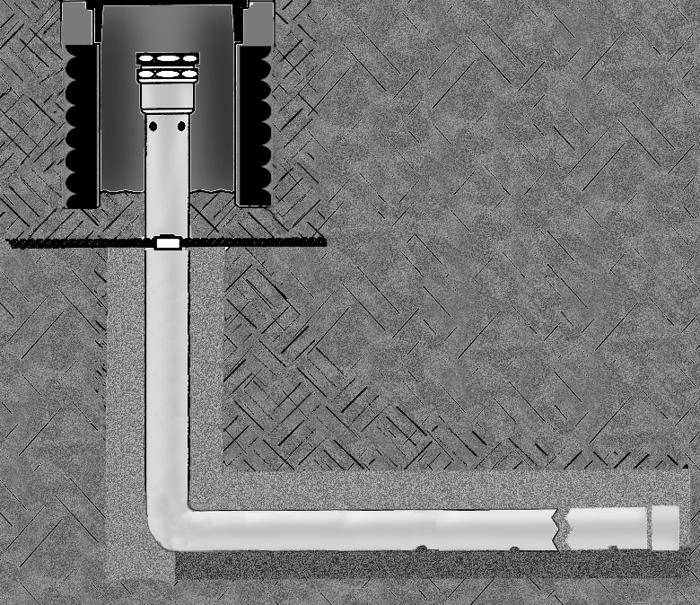

The Advanced Grounding Electrode (AGE) is an allG trademarked product. It is a chemically enhanced grounding electrode system. Each AGE kit includes the following components: 12" long, double wall, high-traffic area test well; a copper AGE electrode; a 4', exothermically welded tail; allG ground enhancement material; and specially formulated starter material. Ground Resistance Enhancement Material and Recharge Materials are also available. Special rod lengths, conductor sizes, and tail lengths are available upon request. Unless otherwise noted, the neck length for the AGE is 30 inches. allG manufactured chemical ground rods meet or exceed UL 467 standards.

Image	Item	Description	Weight	Price	Unit	Qty
	3460	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 4/0 bare copper tail	312 lbs.	$1,770.00*	EA
	3460-02ST	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft #2 solid tinned copper tail	312 lbs.	$1,750.00*	EA
	3460-02G	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft #2 stranded green insulated copper tail	312 lbs.	$1,750.00*	EA
	3460-20	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 2/0 bare copper tail	312 lbs.	$1,765.00*	EA
	3460-20T	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 2/0 tinned copper tail	312 lbs.	$1,770.00*	EA
	3460-30	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 3/0 stranded copper tail	312 lbs.	$1,770.00*	EA
	3460-40T	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 4/0 stranded tinned copper tail	312 lbs.	$1,775.00*	EA
	3460-40G	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 4/0 green insulated copper tail	312 lbs.	$1,775.00*	EA
	3460-250	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 250 MCM copper tail	312 lbs.	$1,775.00*	EA
	3460-500	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 500 MCM copper tail	312 lbs.	$1,850.00*	EA
	3460-750	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 750 MCM copper tail	312 lbs.	$1,975.00*	EA
	3460-168	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4ft 168 copper tail	312 lbs.	$1,760.00*	EA
	3460-30T	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 3/0 stranded tinned copper tail	312 lbs.	$1,770.00*	EA
	3460-228	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 30" neck; 4 ft 228 copper tail	312 lbs.	$1,765.00*	EA
	3460-18N-02ST	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft #2 solid tinned copper tail	312 lbs.	$1,750.00*	EA
	3460-18N-20	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft 2/0 19-strand copper tail	312 lbs.	$1,765.00*	EA
	3460-18N-228	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft 228 copper tail	312 lbs.	$1,765.00*	EA
	3460-18N	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft 4/0 bare copper tail	312 lbs.	$1,770.00*	EA
	3460-18N-20T	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft 2/0 tinned copper tail	312 lbs.	$1,770.00*	EA
	3460-18N-40T	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 18" neck; 4 ft 4/0 stranded tinned copper tail	312 lbs.	$1,775.00*	EA
	3460-24N	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 24" neck; 4 ft 4/0 bare copper tail	312 lbs.	$1,770.00*	EA
	3460-24N-02ST	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 24" neck; 4 ft #2 solid tinned copper tail	312 lbs.	$1,750.00*	EA
	3460-24N-20	Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 10' with 24" neck; 4 ft 2/0 bare copper tail	312 lbs.	$1,765.00*	EA

* Pricing subject to change on this item
