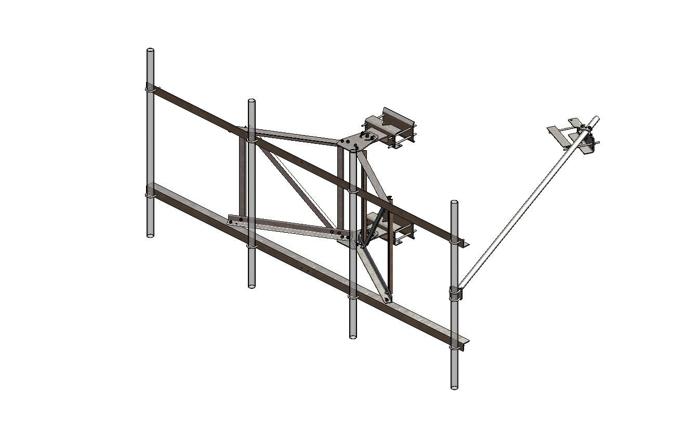

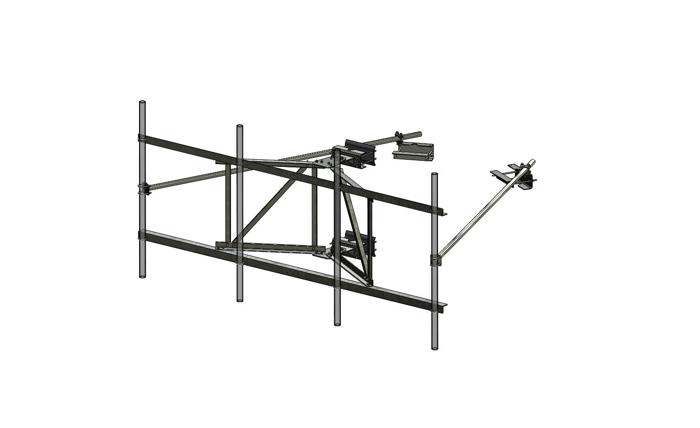

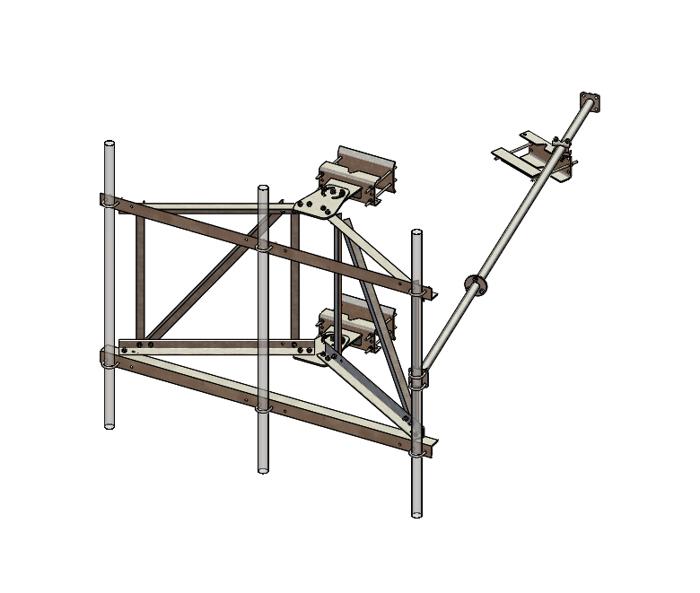

The galvanized steel Antenna Mount Assembly attaches to round or angle tower legs without requiring an additional interface kit. The mount provides plus or minus 60-degrees of azimuth adjustment. The innovative mounting clamps accommodate straight and tapered faced lattice towers up to a 2:20 taper. The clamp fits tower legs from 1-1/2" up to 8" OD round, 8"x 8" 90-degree angles, or 11" tip-to-tip 60-degree angles. All fasteners are 1/2" throughout and only one wrench size (7/8") is required to complete the installation. Antenna mounting pipe hardware is included with the mount. All 2116R series Sector Frames meet Rev TIA-222-G requirements. Antenna mount pipe is sold seperately.

Image	Item	Description	Weight	Price	Unit	Qty
	2116R-7	7' Sector Frame; single sway bar support; This mount MUST use a minimum of (2) antenna pipes to meet loading requirements; ALT 2125 series antenna... (see more) 7' Sector Frame; single sway bar support; This mount MUST use a minimum of (2) antenna pipes to meet loading requirements; ALT 2125 series antenna mount pipes sold separately	355 lbs.	$1,600.00*	EA
	2116R-10	10' Sector Frame; single sway bar support; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements; ALT 2125 series antenn... (see more) 10' Sector Frame; single sway bar support; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements; ALT 2125 series antenna mount pipes sold separately	410 lbs.	$1,700.00*	EA
	2116R-12	12' Sector Frame; single sway bar support; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements; ALT 2125 series antenn... (see more) 12' Sector Frame; single sway bar support; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements; ALT 2125 series antenna mount pipes sold separately	435 lbs.	$1,780.00*	EA
	2116R-10HD	10' Heavy Duty Sector Frame; double sway bar supports; also includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum... (see more) 10' Heavy Duty Sector Frame; double sway bar supports; also includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements**; ALT 2125 series antenna mount pipes sold separately	465 lbs.	$0.00*	EA
	2116R-12HD	12' Heavy Duty Sector Frame; Double sway bar supports; Includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum of ... (see more) 12' Heavy Duty Sector Frame; Double sway bar supports; Includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements**; allG 2125 series antenna mount pipes sold separately	490 lbs.	$1,940.00*	EA
	2116R-14HD	14' Heavy Duty Sector Frame; double sway bar supports; also includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum... (see more) 14' Heavy Duty Sector Frame; double sway bar supports; also includes hardware for 2-3/8"OD or 2-7/8"OD antenna pipes; This mount MUST use a minimum of (3) antenna pipes to meet loading requirements**; ALT 2125 series antenna mount pipes sold separately	515 lbs.	$2,140.00*	EA
	2116S-7	7' Sector Frame; double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenna... (see more) 7' Sector Frame; double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenna mount pipes sold separately	462.67 lbs.	$1,980.00*	EA
	2116S-7-4-96	7' Sector Frame Kit; includes: (1) 2116S-7 - 7' sector frame (4) 2126-96 - 96" 2-7/8"OD pipe	650.29 lbs.	$2,476.00*	EA
	2116S-10	10' Sector Frame; double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenn... (see more) 10' Sector Frame; double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenna mount pipes sold separately	521.43 lbs.	$2,120.00*	EA
	2116S-10-4-96	10' Sector Frame Kit; includes: (1) 2116S-10 - 10' sector frame (4) 2126-96 - 96" 2-7/8"OD pipe	707.47 lbs.	$2,616.00*	EA
	2116S-12	12' Sector Frame; Double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenn... (see more) 12' Sector Frame; Double sway bar support; This mount MUST use a minimum of (4) antenna pipes to meet loading requirements; ALT 2126 series antenna mount pipes sold separately	553.79 lbs.	$2,220.00*	EA
	2116S-12-4-96	12' Sector Frame Kit; Includes: (1) 2116S-12 - 12' sector frame (4) 2126-96 - 96" 2-7/8"OD pipe	740 lbs.	$2,716.00*	EA
	2116-MSK	Universal Mount Stabilizer Kit for Sector Frames; Adjustable lenghts; Applicable in horizontal or vertical positions at frame attachment points; Fits ... (see more) Universal Mount Stabilizer Kit for Sector Frames; Adjustable lenghts; Applicable in horizontal or vertical positions at frame attachment points; Fits frame pipe sizes 2-3/8" OD through 3-1/2" OD	143 lbs.	$665.00*	EA
