Product Guide  >  Grounding Materials  >  Chemical Ground Rods & Accesso...  >  AGE - Advanced Grounding Elect...  >  AGE - 16' Horizontal

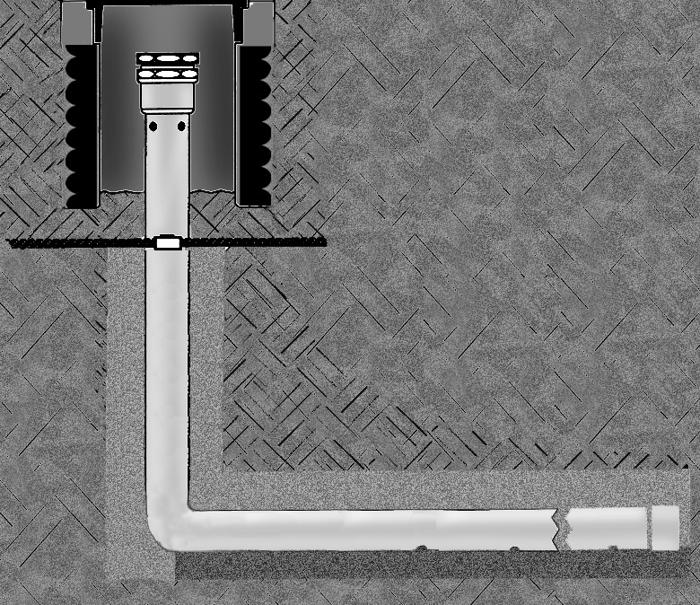

The Advanced Grounding Electrode (AGE) is an allG trademarked product. It is a chemically enhanced grounding electrode system. Each AGE kit includes the following components: 12" long, double wall, high-traffic area test well; a copper AGE electrode; a 4', exothermically welded tail; allG ground enhancement material; and specially formulated starter material. Ground Resistance Enhancement Material and Recharge Materials are also available. Special rod lengths, conductor sizes, and tail lengths are available upon request. Unless otherwise noted, the neck length for the AGE is 30 inches. allG manufactured chemical ground rods meet or exceed UL 467 standards.

Related Product Info

See Also

Image Item Description Weight Price Unit Qty

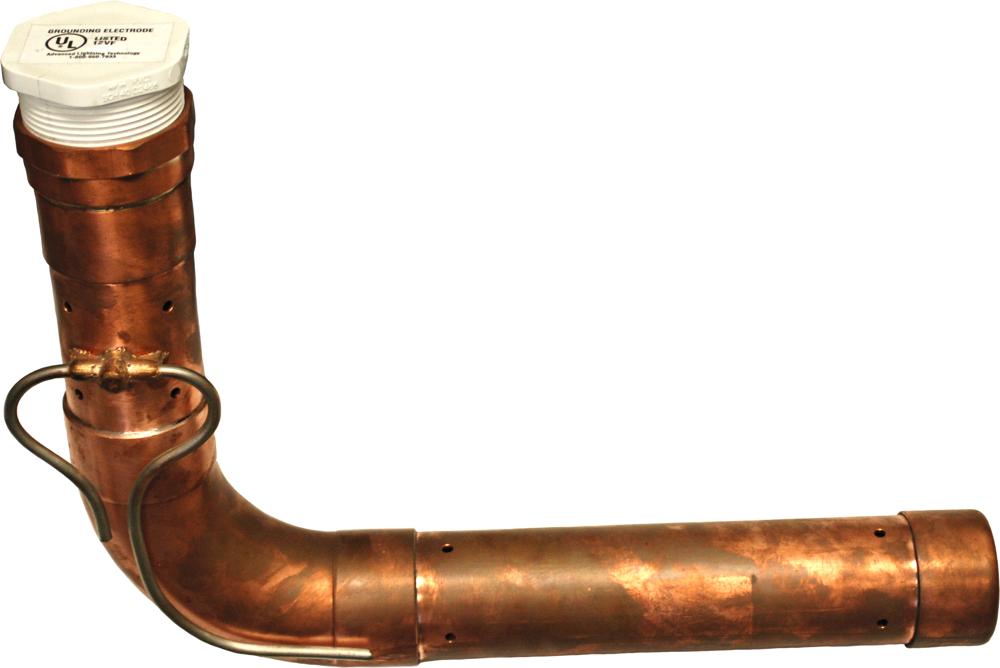

Item #3466
3466
Item #3466 		Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 bare copper tail; 16' 502 lbs. $2,435.00* EA
Item #3466-02ST
3466-02ST
Item #3466-02ST 		Horizontal Advanced Grounding Electrode Kit Assembly; #2 solid tinned copper tail; 16' 502 lbs. $2,415.00* EA
Item #3466-20
3466-20
Item #3466-20 		Horizontal Advanced Grounding Electrode Kit Assembly; 2/0 bare copper tail; 16' 502 lbs. $2,430.00* EA
Item #3466-40T
3466-40T
Item #3466-40T 		Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 stranded tinned copper tail; 16' 502 lbs. $2,440.00* EA
Item #3466-40G
3466-40G
Item #3466-40G 		Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 green insulated copper tail; 16' 502 lbs. $2,440.00* EA
Item #3466-250
3466-250
Item #3466-250 		Horizontal Advanced Grounding Electrode Kit Assembly; 250 MCM copper tail; 16' 502 lbs. $2,440.00* EA
Item #3466-500
3466-500
Item #3466-500 		Horizontal Advanced Grounding Electrode Kit Assembly; 500 MCM copper tail; 16' 502 lbs. $2,515.00* EA
Item #3466-168
3466-168
Item #3466-168 		Horizontal Advanced Grounding Electrode Kit Assembly; 168 28 strands of 16 ga copper tail; 16' 502 lbs. $2,425.00* EA
Item #3466-30
3466-30
Item #3466-30 		Horizontal Advanced Grounding Electrode Kit Assembly; 3/0 stranded bare copper tail; 16' 502 lbs. $2,435.00* EA
Item #3466-228
3466-228
Item #3466-228 		Horizontal Advanced Grounding Electrode Kit Assembly; 28 strands of 14 ga copper tail; 16' 502 lbs. $2,430.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
