Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminal Bases - Class II ...  >  Adjustable (Malleable) Bases

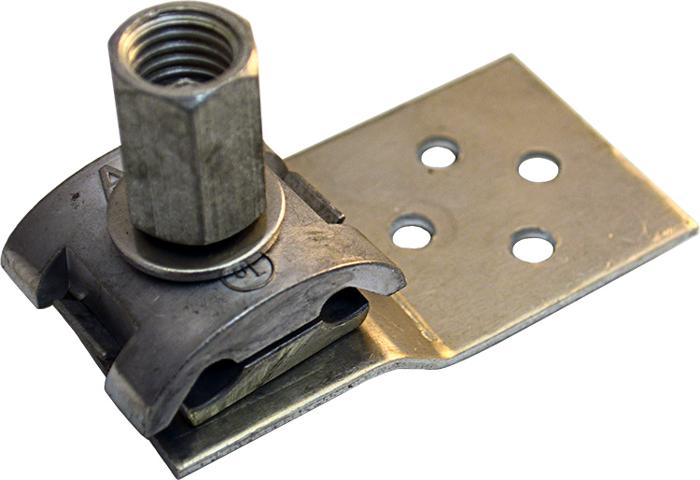

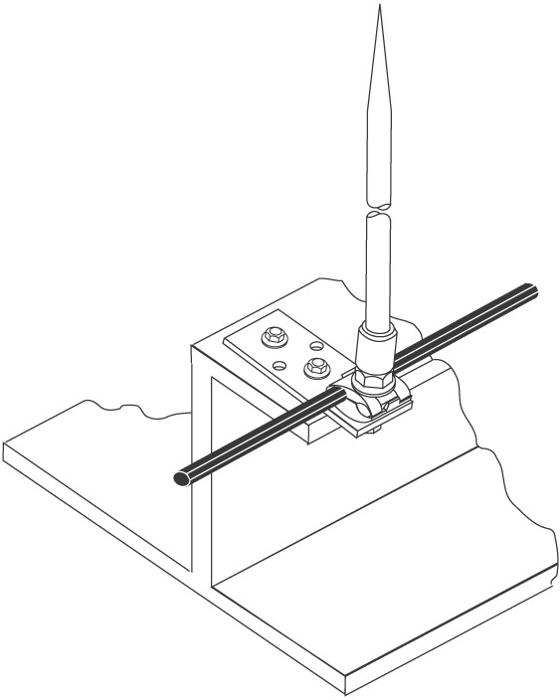

allG offers Adjustable (malleable) Bases designed for mounting air terminals on sloped surfaces. The base can be formed for air terminals vertical positioning.

See Also

Image Item Description Weight Price Unit Qty
Item #843-38
843-38

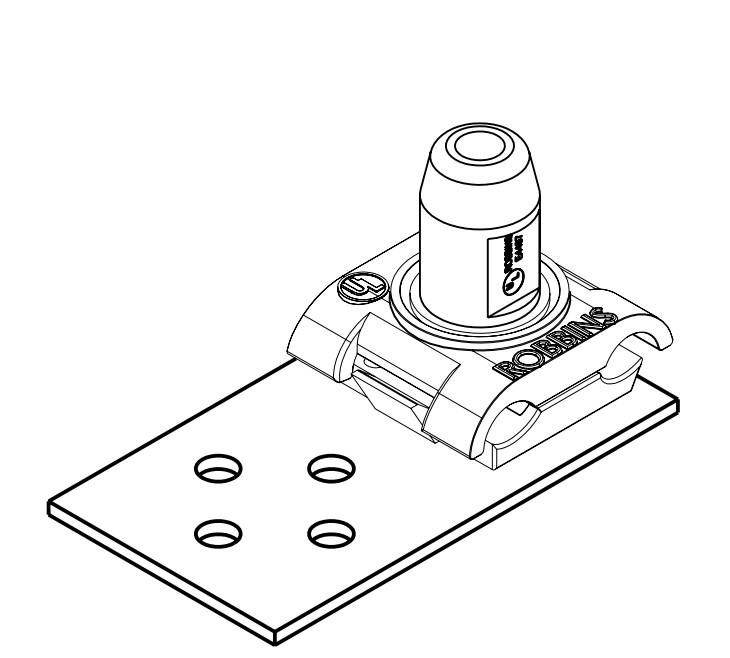

Item #843-38 		Malleable Base; 3/8"; Copper; Fits Class I conductor sizes 0.292 to 0.531; UL Listed 0.95 lbs. $32.00* EA
Item #843-12
843-12
Item #843-12 		Malleable Base; 1/2"; Copper; Fits Class II conductor sizes 0.400 to 0.562; UL Listed 0.95 lbs. $32.00* EA
Item #843-58
843-58
Item #843-58 		Malleable Base; 5/8"; Copper; Fits Class II conductor sizes 0.400 to 0.562; UL Listed 0.95 lbs. $33.00* EA
Item #A843-12
A843-12
Item #A843-12 		Malleable Base; 1/2"; Aluminum; Fits Class I conductor sizes 0.375 thru 0.563; UL Listed 0.37 lbs. $18.00* EA
Item #A843-58
A843-58

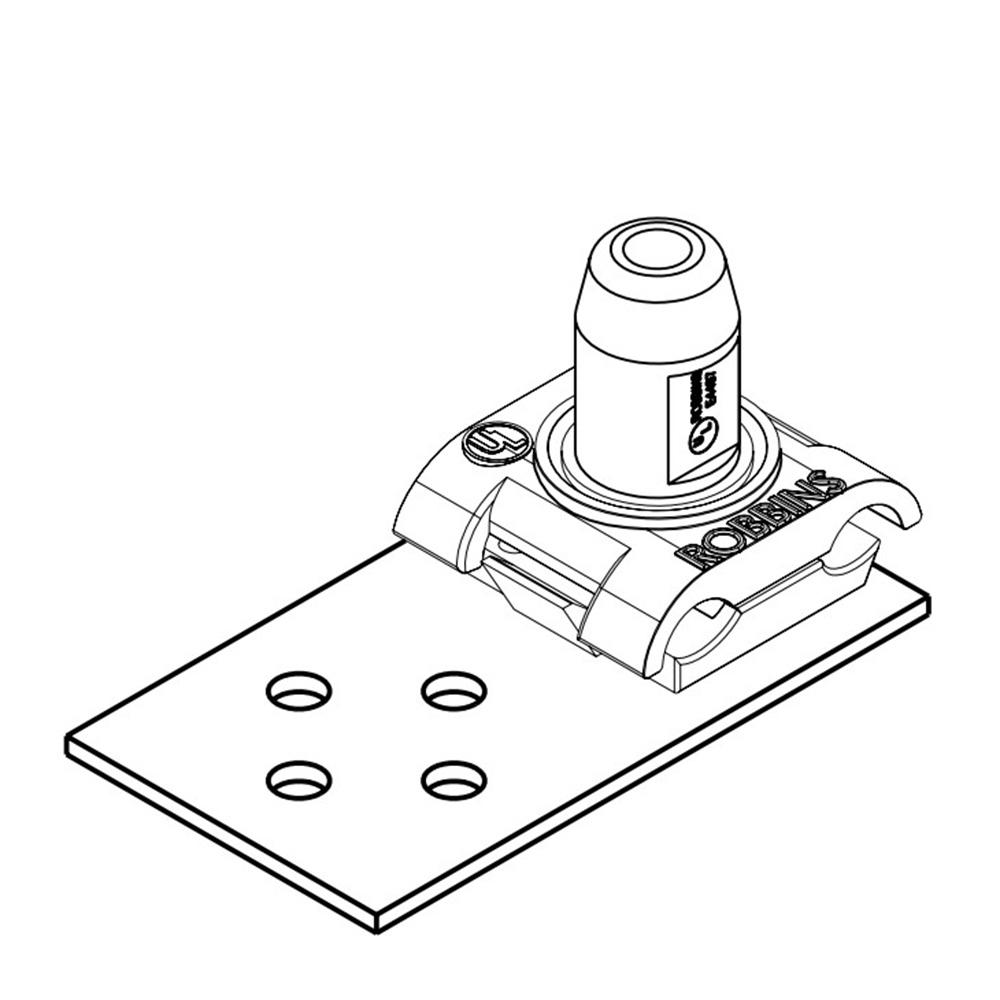

Item #A843-58 		Malleable Base; 5/8"; Aluminum; Fits Class II conductor sizes 0.375 thru 0.563; UL Listed 0.37 lbs. $18.40* EA
Item #A843-12-316
A843-12-316
Item #A843-12-316 		Malleable Base; 1/2"; Aluminum; Fits Class I conductor sizes 0.375 thru 0.563; Includes Grade 316 stainless steel hardware; UL Listed 0.37 lbs. $19.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
