allG Fabrication, Ltd.

Product Guide > Grounding Materials > Chemical Ground Rods & Accesso... > AGE - Advanced Grounding Elect... > AGE - 40' Vertical

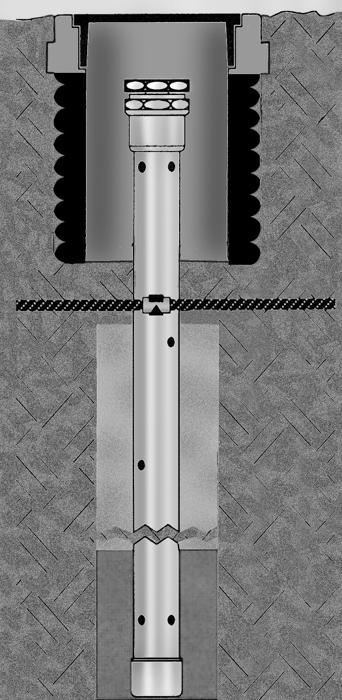

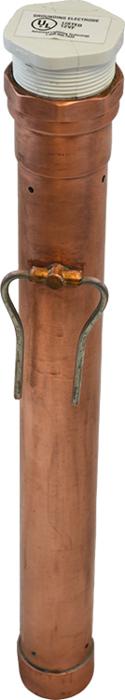

The Advanced Grounding Electrode (AGE) is an allG trademarked product. It is a chemically enhanced grounding electrode system. Each AGE kit includes the following components: 12" long, double wall, high-traffic area test well; a copper AGE electrode; a 4', exothermically welded tail; allG ground enhancement material; and specially formulated starter material. Ground Resistance Enhancement Material and Recharge Materials are also available. Special rod lengths, conductor sizes, and tail lengths are available upon request. allG manufactured chemical ground rods meet or exceed UL 467 standards.

Image	Item	Description	Weight	Price	Unit	Qty
	3458-1	Vertical Advanced Grounding Electrode Kit Assembly; 4/0 bare copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,930.00*	EA
	3458-1-02ST	Vertical Advanced Grounding Electrode Kit Assembly; #2 solid tinned copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,910.00*	EA
	3458-1-02G	Vertical Advanced Grounding Electrode Kit Assembly; #2 stranded green insulated copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,910.00*	EA
	3458-1-20	Vertical Advanced Grounding Electrode Kit Assembly; 2/0 bare copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,925.00*	EA
	3458-1-40T	Vertical Advanced Grounding Electrode Kit Assembly; 4/0 stranded tinned copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,935.00*	EA
	3458-1-40G	Vertical Advanced Grounding Electrode Kit Assembly; 4/0 green insulated copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,935.00*	EA
	3458-1-250	Vertical Advanced Grounding Electrode Kit Assembly; 250 MCM copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,935.00*	EA
	3458-1-500	Vertical Advanced Grounding Electrode Kit Assembly; 500 MCM copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$5,010.00*	EA
	3458-1-168	Vertical Advanced Grounding Electrode Kit Assembly; 168 28 strands of 16 ga copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,920.00*	EA
	3458-1-30	Vertical Advanced Grounding Electrode Kit Assembly; 3/0 stranded bare copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,930.00*	EA
	3458-1-228	Vertical Advanced Grounding Electrode Kit Assembly; 28 strands of 14 ga copper tail; shipped in (2) pieces; chemicals are field applied; 40'	1028 lbs.	$4,925.00*	EA
