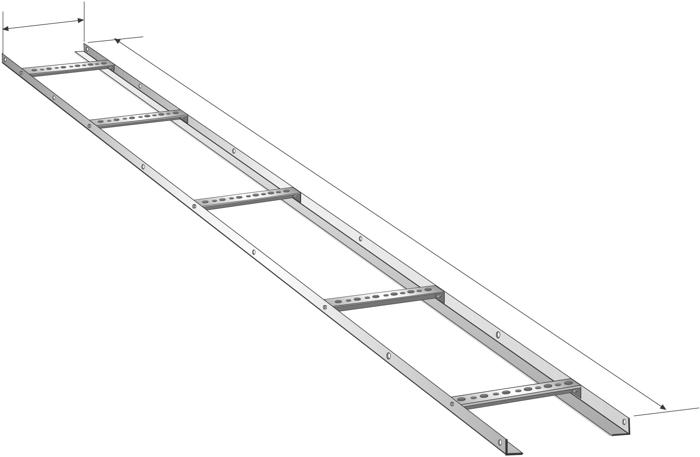

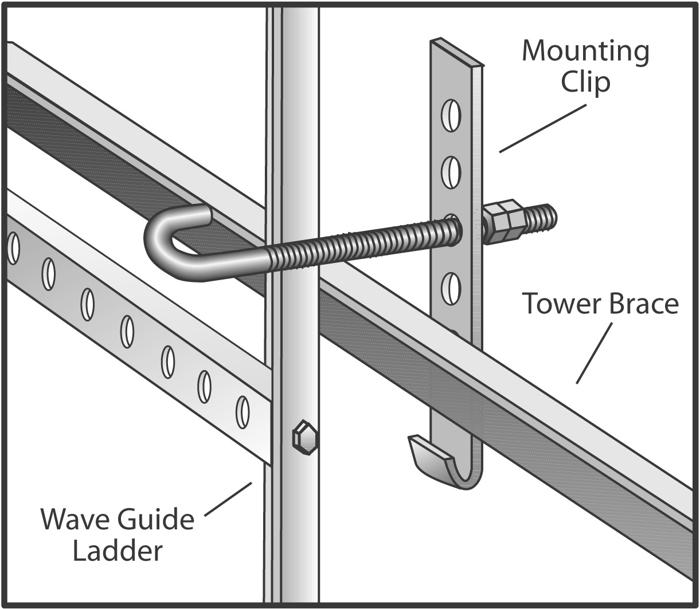

allG's galvanized steel Waveguide Ladders are offered in 10' and 20' lengths to accomodate up to 15 runs of 1-5/8" coax. The ladder rungs, welded on 4' centers, are provided with 3/4" and 7/16" holes for snap-in or butterfly hanger attachments. Mounting clips and J-Bolts are included for installation to angle tower braces. An optional round brace clamp is available for installation on round tower braces (allG Part #2101-RM). All ladders include splice hardware to allow multiple sections to be joined. Snap-in and butterfly hangers are sold seperately.

Image Item Description Weight Price Unit Qty
2100-4W
Item #2100-4W
Welded Waveguide Ladder; 4 hole; 20' section; 15" wide; includes J-bolts & mounting hardware 60.80 lbs. $270.00* EA
2100-6W
Item #2100-6W
Welded Waveguide Ladder; 6 hole; 20' section; 20" wide; includes J-bolts & mounting hardware 65.80 lbs. $290.00* EA
2100-9W
Item #2100-9W
Welded Waveguide Ladder; 9 hole; 20' section; 27" wide; includes J-bolts & mounting hardware 69.50 lbs. $300.00* EA
2100-9W-3
Item #2100-9W-3
Welded Waveguide Ladder; 9 hole rungs on 35" centers; 20' section; includes J-bolts & mounting hardware 74.50 lbs. $320.00* EA
2100-12W
Item #2100-12W
Welded Waveguide Ladder; 12 hole; 20' section; 35" wide; includes J-bolts & hardware 67 lbs. $315.00* EA
2100-12W-3
Item #2100-12W-3
Welded Waveguide Ladder; 12 hole rungs on 35" centers; 20' section; includes J-bolts & mounting hardware 79.20 lbs. $335.00* EA
2100-15W
Item #2100-15W
Welded Waveguide Ladder; 15 hole; 20' section; 42" wide; includes J-bolts & hardware 71 lbs. $330.00* EA
2101-4W
Item #2101-4W
Welded Waveguide Ladder; 4 hole; 10' section; includes J-bolts & mounting hardware 32.60 lbs. $160.00* EA
2101-6W
Item #2101-6W
Welded Waveguide Ladder; 6 hole; 10' section; includes J-bolts & mounting hardware 33.80 lbs. $172.00* EA
2101-9W
Item #2101-9W
Welded Waveguide Ladder; 9 hole; 10' section; includes J-bolts & mounting hardware 37 lbs. $176.00* EA
2101-9W-3
Item #2101-9W-3
Welded Waveguide Ladder; 9 hole rungs on 30" centers; 10' section; includes J-bolts & mounting hardware 40 lbs. $191.00* EA
2101-12W
Item #2101-12W
Welded Waveguide Ladder; 12 hole; 10' section; includes J-bolts & hardware 36 lbs. $184.00* EA
2101-15W
Item #2101-15W
Welded Waveguide Ladder; 15 hole; 10' section; includes J-bolts & hardware 37 lbs. $192.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
