Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminal Bases - Class II ...  >  Universal Pipe Rail Mount Bases

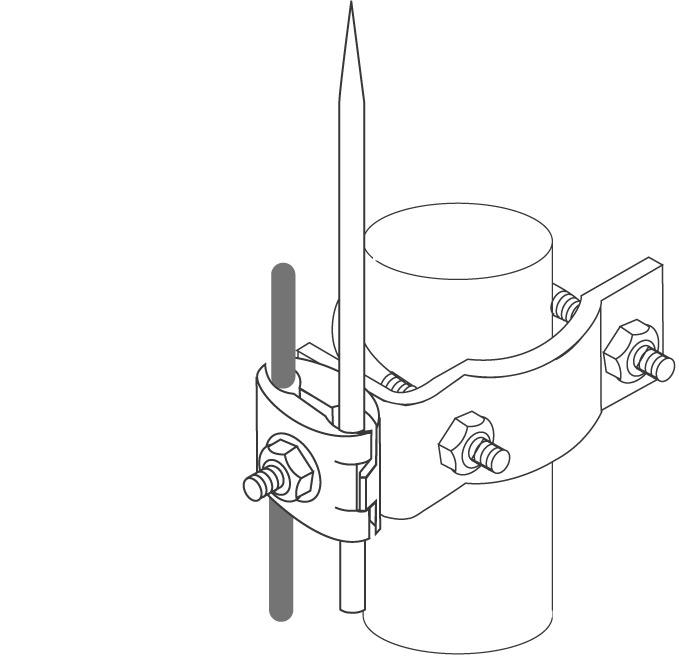

allG offers Universal Pipe Rail Mount Bases that will mount air terminals and conductors to both horizontal and vertical pipes. The cast clamp base has a stainless steel U-bolt for mounting air terminals on pipes, rails, or other round objects where a conductor connector is required. These based are available in bronze, tinned bronze, and aluminum.

See Also

Image Item Description Weight Price Unit Qty
Item #1640-34-114
1640-34-114
Item #1640-34-114
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 3/4" to 1-1/4" OD; Allows for both verti... (see more)
 0.64 lbs. $24.00* EA
Item #1640-114-2
1640-114-2
Item #1640-114-2
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 1-1/4" to 2" OD; Allows for both vertica... (see more)
 0.72 lbs. $27.00* EA
Item #1640-2-212
1640-2-212
Item #1640-2-212
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2" to 2-1/2" OD; Allows for both vertica... (see more)
 0.75 lbs. $31.00* EA
Item #1640-212-334
1640-212-334
Item #1640-212-334
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2-1/2" to 3-3/4" OD; Allows for both ver... (see more)
 0.85 lbs. $37.00* EA
Item #1640-312-434
1640-312-434
Item #1640-312-434
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 3-1/2" to 4-3/4" OD; Allows for both ver... (see more)
 0.98 lbs. $45.00* EA
Item #1640-412-634
1640-412-634
Item #1640-412-634
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 4-1/2" to 6-3/4" OD; Allows for both ver... (see more)
 1.14 lbs. $55.00* EA

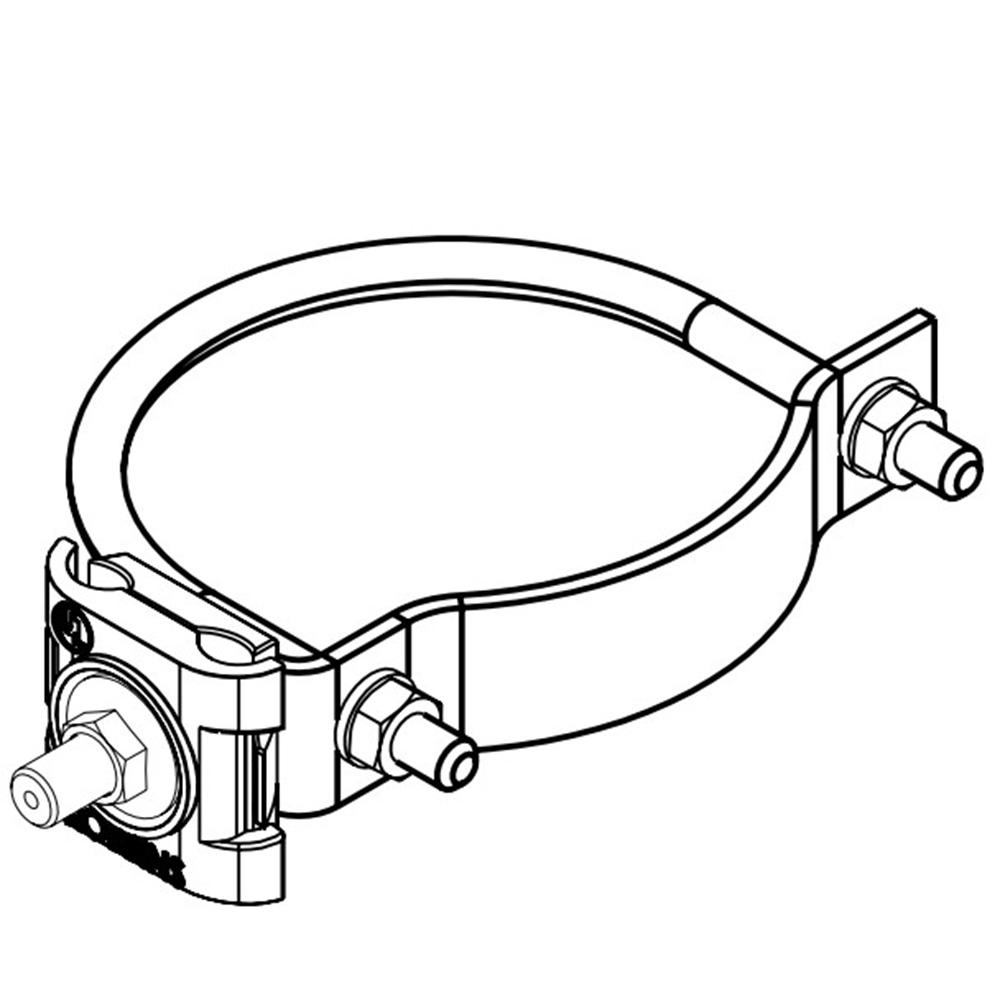

Item #1640-712-834
1640-712-834
Item #1640-712-834
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 7-1/2" to 8-3/4" OD; Allows for both ver... (see more)
 1.50 lbs. $72.00* EA
Item #1640-834-1034
1640-834-1034
Item #1640-834-1034
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 8-3/4" to 10-3/4" OD; Allows for both ve... (see more)
 1.75 lbs. $89.00* EA
Item #1640-1034-1234
1640-1034-1234
Item #1640-1034-1234
Universal Pipe Base; Bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 10-3/4" to 12-3/4" OD; Allows for both v... (see more)
 2 lbs. $99.00* EA
Item #1640T-34-114
1640T-34-114
Item #1640T-34-114
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; fits 3/4" to 1-1/4" OD; Allows for bot... (see more)
 0.64 lbs. $28.00* EA
Item #1640T-114-2
1640T-114-2
Item #1640T-114-2
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 1-1/4" to 2" OD; Allows for both ... (see more)
 0.72 lbs. $31.00* EA
Item #1640T-2-212
1640T-2-212
Item #1640T-2-212
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2" to 2-1/2" OD; Allows for both ... (see more)
 0.75 lbs. $35.00* EA

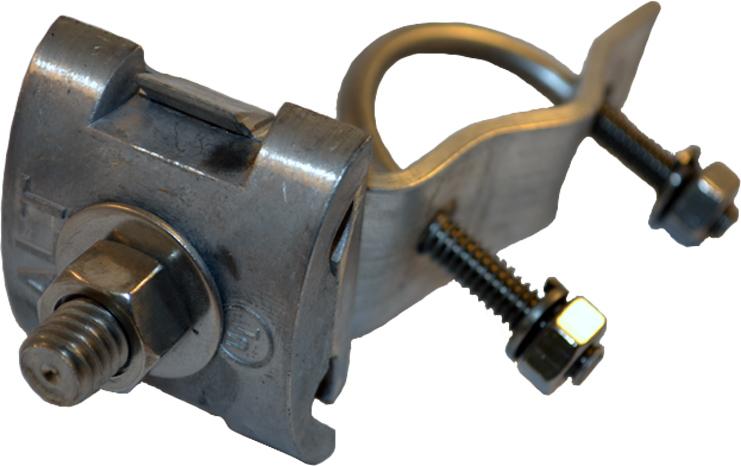

Item #1640T-212-334
1640T-212-334
Item #1640T-212-334
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2-1/2" to 3-3/4" OD; Allows for b... (see more)
 0.85 lbs. $41.00* EA
Item #1640T-312-434
1640T-312-434
Item #1640T-312-434
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 3-1/2" to 4-3/4" OD; Allows for b... (see more)
 0.98 lbs. $49.00* EA
Item #1640T-412-634
1640T-412-634
Item #1640T-412-634
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 4-1/2" to 6-3/4" OD; Allows for b... (see more)
 1.14 lbs. $60.00* EA
Item #1640T-712-834
1640T-712-834
Item #1640T-712-834
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 7-1/2" to 8-3/4" OD; Allows for b... (see more)
 1.50 lbs. $77.00* EA
Item #1640T-834-1034
1640T-834-1034
Item #1640T-834-1034
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 8-3/4" to 10-3/4" OD; Allows for ... (see more)
 1.75 lbs. $94.00* EA
Item #1640T-1034-1234
1640T-1034-1234
Item #1640T-1034-1234
Universal Pipe Base; Tinned bronze; Fits 3/8", 5/8", & 1/2" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 10-3/4" to 12-3/4" OD; Allows for... (see more)
 2 lbs. $109.00* EA
Item #A1640-34-114
A1640-34-114
Item #A1640-34-114
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 3/4" to 1-1/4" OD; Allows for both vertical &... (see more)
 0.30 lbs. $19.00* EA
Item #A1640-114-2
A1640-114-2
Item #A1640-114-2
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 1-1/4" to 2" OD; Allows for both vertical & h... (see more)
 0.40 lbs. $23.00* EA
Item #A1640-2-212
A1640-2-212
Item #A1640-2-212
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2" to 2-1/2" OD; Allows for both vertical & h... (see more)
 0.40 lbs. $25.25* EA
Item #A1640-212-334
A1640-212-334
Item #A1640-212-334
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 2-1/2" to 3-3/4" OD; Allows for both vertical... (see more)
 0.45 lbs. $28.00* EA
Item #A1640-312-434
A1640-312-434
Item #A1640-312-434
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 3-1/2" to 4-3/4" OD; Allows for both vertical... (see more)
 0.50 lbs. $30.00* EA
Item #A1640-412-634
A1640-412-634
Item #A1640-412-634
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 4-1/2" to 6-3/4" OD; Allows for both vertical... (see more)
 0.70 lbs. $31.00* EA
Item #A1640-712-834
A1640-712-834
Item #A1640-712-834
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 7-1/2" to 8-3/4" OD; Allows for both vertical... (see more)
 0 lbs. $41.00* EA
Item #A1640-834-1034
A1640-834-1034
Item #A1640-834-1034
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 8-3/4" to 10-3/4" OD; Allows for both vertica... (see more)
 0 lbs. $58.00* EA
Item #A1640-1034-1234
A1640-1034-1234
Item #A1640-1034-1234
Universal Pipe Base; Aluminum; Fits 1/2" & 5/8" air terminals; Fits conductor sizes 0.292 to 0.528; Fits 10-3/4" to 12-3/4" OD; Allows for both vertic... (see more)
 0 lbs. $85.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
