Product Guide  >  Grounding Materials  >  Test Wells  >  Test Wells - Galvanized Steel Lid

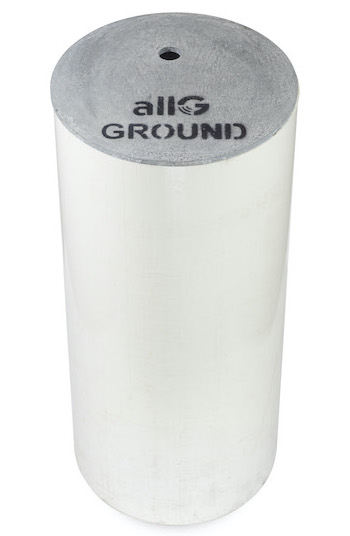

allG offers Ground Test Wells made of Schedule 40 PVC with a galvanized steel lid. Lid has offset lift hole and/or lift handles and positioning tabs. The test well can withstand temperatures up to, but not exceeding, 140 degrees fahrenheit. Other test well lengths are available upon request.

Image Item Description Weight Price Unit Qty
Item #3198-12
3198-12
Item #3198-12 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 12" deep x 10" diameter 13.98 lbs. $99.00* EA
Item #3198-18
3198-18
Item #3198-18 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 18" deep x 10" diameter Previously Robbins part # 89C-18 18 lbs. $115.00* EA
Item #3198-24
3198-24

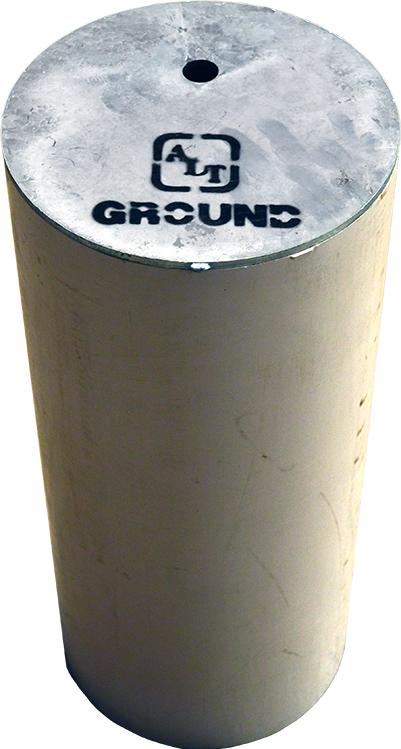

Item #3198-24 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 24" deep x 10" diameter Previously Robbins part # 89C-24 22.52 lbs. $131.00* EA
Item #3198-30
3198-30
Item #3198-30 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 30" deep x 10" diameter 26 lbs. $147.00* EA
Item #3198-36
3198-36

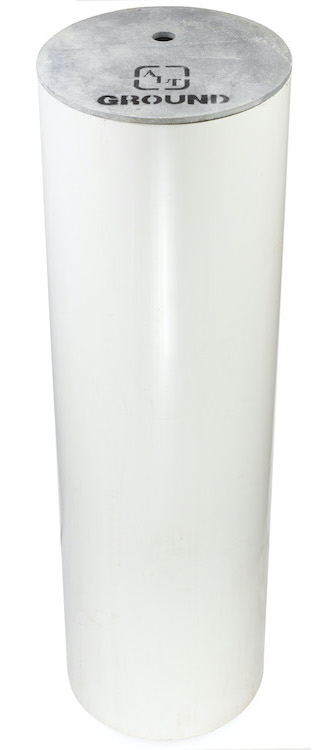

Item #3198-36 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 36" deep x 10" diameter Previously Robbins part # 89C-36 32 lbs. $163.00* EA
Item #3198-48
3198-48
Item #3198-48 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 48" deep x 10" diameter 38 lbs. $195.00* EA
Item #3199-12
3199-12
Item #3199-12 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 12" deep x 12" diameter 20 lbs. $119.00* EA
Item #3199-18
3199-18
Item #3199-18 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 18" deep x 12" diameter Previously Robbins part # 89D-18 25.75 lbs. $138.00* EA
Item #3199-24
3199-24

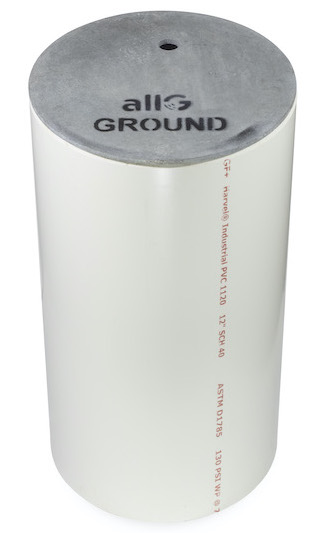

Item #3199-24 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 24" deep x 12" diameter Previously Robbins part # 89D-24 31.50 lbs. $157.00* EA
Item #3199-36
3199-36
Item #3199-36 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground"; 140 degree max temperature; 36" deep x 12" diameter Previously Robbins part # 89D-36 43 lbs. $195.00* EA
Item #3190-12
3190-12

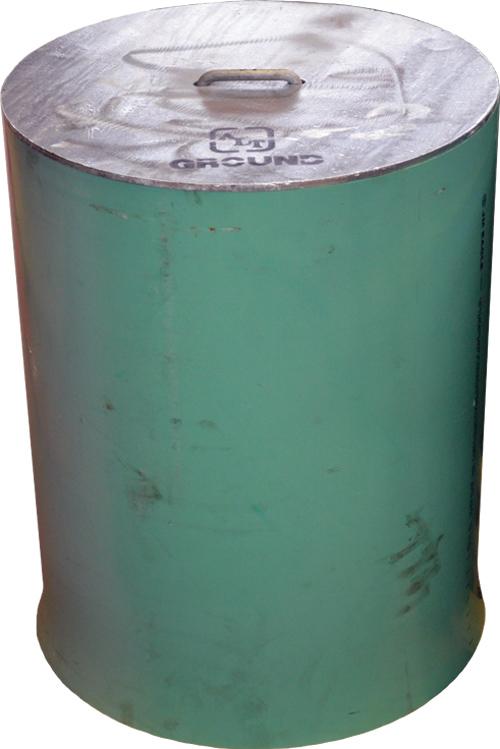

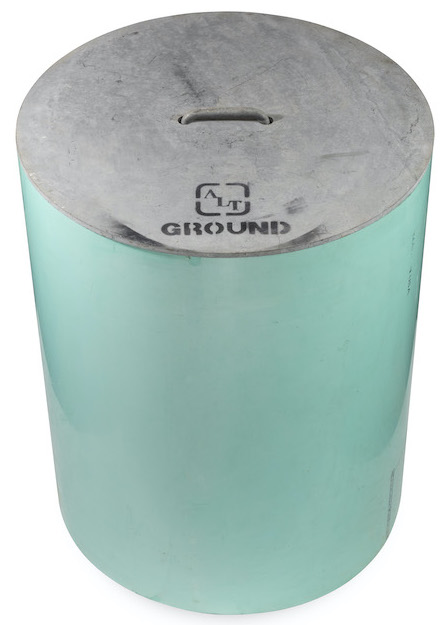

Item #3190-12 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground" with lift handle; 140 degree max temperature; 12" deep x 18" diameter 30 lbs. $276.00* EA
Item #3190-24
3190-24
Item #3190-24 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground" with lift handle; 140 degree max temperature; 24" deep x 18" diameter 59 lbs. $396.00* EA
Item #3190-30
3190-30
Item #3190-30 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground" with lift handle; 140 degree max temperature; 30" deep x 18" diameter 74 lbs. $456.00* EA
Item #3190-36
3190-36
Item #3190-36 		Test Well; Economy; Sch 40 PVC; Galvanized steel cover marked "Ground" with lift handle; 140 degree max temperature; 36" deep x 18" diameter 89 lbs. $516.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
