Product Guide  >  Grounding Materials  >  Test Wells  >  Test Wells - High Traffic Area

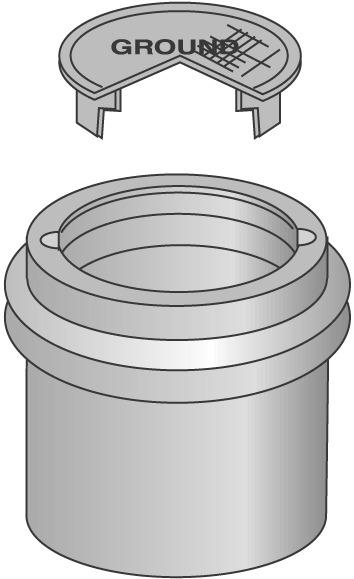

The allG standard high traffic area test well is constructed from Schedule 40 PVC. Each test well includes a cast iron lid marked "Ground" and a cast iron ring for support. Lids with security bolts may be ordered by adding the suffix "-1" when ordering. The test well is H20 load rated for 13,000 pounds and can withstand temperatures up to, but not exceeding, 140 degrees fahrenheit. The test well meets all requirements of the 'Buy American Act'. Other test well lengths are available upon request.

Image Item Description Weight Price Unit Qty
Item #3111
3111
Item #3111 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 12" deep 36 lbs. $194.00* EA
Item #3131
3131
Item #3131 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 18" deep 40 lbs. $224.00* EA
Item #3151
3151
Item #3151 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 24" deep 45 lbs. $254.00* EA
Item #3157
3157
Item #3157 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 30" deep 50 lbs. $284.00* EA
Item #3171
3171
Item #3171 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 36" deep 55 lbs. $314.00* EA
Item #3111-1
3111-1
Item #3111-1
Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground" with security bolt; H20 rated for 13,000 lbs; 140 degree max temperature; 12... (see more)
 37 lbs. $229.00* EA
Item #3131-1
3131-1
Item #3131-1
Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground" with security bolt; H20 rated for 13,000; 140 degree max temperature; 12" di... (see more)
 41 lbs. $259.00* EA
Item #3151-1
3151-1
Item #3151-1
Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 1... (see more)
 46 lbs. $289.00* EA
Item #3157-1
3157-1
Item #3157-1 		Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground" with security bolt; H20 rated for 13,000; 140 degree max temp; 12" diameter x 30" deep 51 lbs. $319.00* EA
Item #3171-1
3171-1
Item #3171-1
Test Well; Sch 40 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 1... (see more)
 56 lbs. $349.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
