allG Fabrication, Ltd.

Product Guide > Grounding Materials > Test Wells > Test Wells - Cast Iron Lid

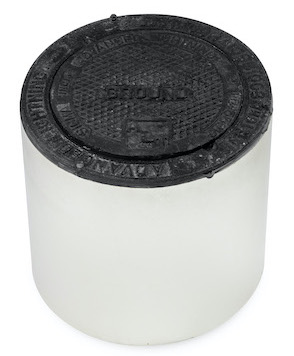

The allG standard test well is constructed from Schedule 40 PVC. Each test well includes a cast iron lid marked "Ground" and a cast iron ring to support the lid. Lids with security bolts may be ordered by adding the suffix "-1" when ordering. The test well is H20 load rated for 13,000 pounds and can withstand temperatures up to, but not exceeding, 140 degrees fahrenheit. The test well meets all requirements of the 'Buy American Act'. Other test well lengths are available upon request.

Item# 3101

Image	Item	Description	Weight	Price	Unit	Qty

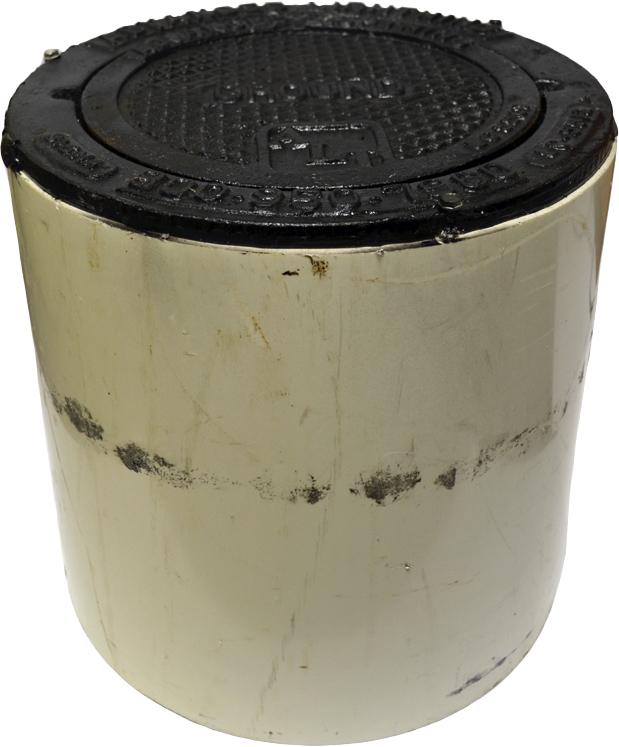

	3101	Test Well; Sch 40 PVC; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 12" deep	34 lbs.	$174.00*	EA
	3121	Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 18" deep	40 lbs.	$204.00*	EA

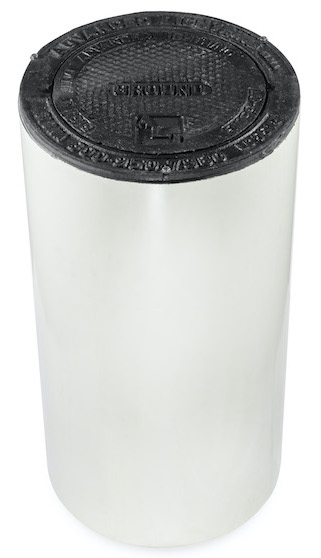

	3141	Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 24" deep	44 lbs.	$234.00*	EA
	3155	Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 30" deep	48 lbs.	$264.00*	EA

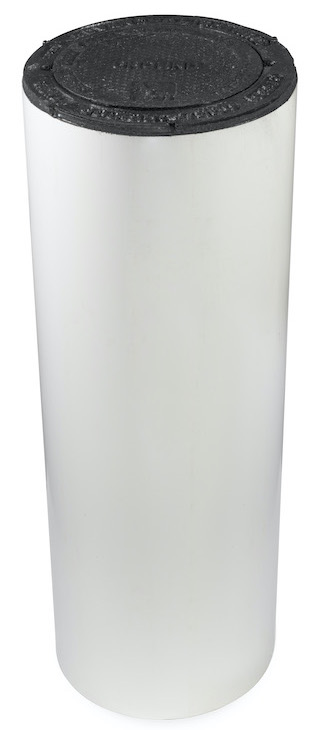

	3161	Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 36" deep	53 lbs.	$294.00*	EA
	3181	Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground"; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 48" deep	62 lbs.	$354.00*	EA
	3101-1	Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diam... (see more) Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 12" deep	35 lbs.	$209.00*	EA
	3121-1	Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" d... (see more) Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 18" deep	41 lbs.	$239.00*	EA
	3141-1	Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diam... (see more) Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 24" deep	45 lbs.	$269.00*	EA
	3155-1	Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" d... (see more) Test Well; Sch 40 PVC; Standard duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 30" deep	49 lbs.	$299.00*	EA
	3161-1	Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diam... (see more) Test Well; Sch 40 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 13,000 lbs; 140 degree max temperature; 12" diameter x 36" deep	54 lbs.	$329.00*	EA

* Pricing subject to change on this item

**Product received may vary from photo

Formerly ALT
