Product Guide  >  Grounding Materials  >  Test Wells  >  Test Wells - Heavy Duty

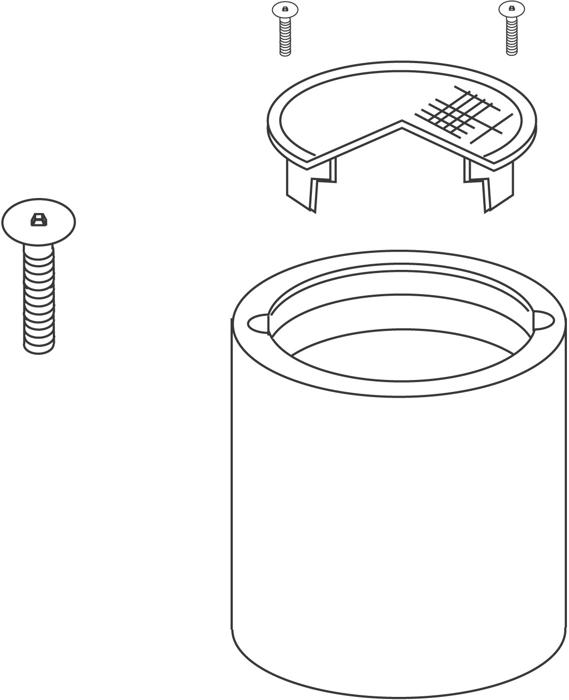

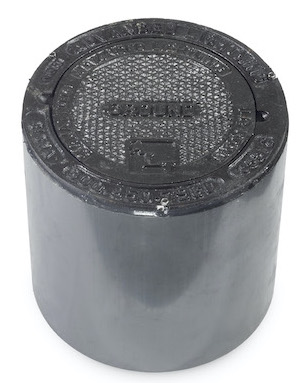

The allG Heavy Duty Test Wells are constructed of PVC or steel. Each test well comes with a cast iron lid marked "Ground" and has a cast iron ring for support. Lids with security bolts may be ordered by adding the suffix "-1" when ordering. The test well is H20 load rated with PVC being rated for 15,000 pounds and the steel test well being rated at 9,000 pounds. The test well meets all requirements of the 'Buy American Act'. Other test well lengths are available upon request.

Image Item Description Weight Price Unit Qty
Item #3100
3100
Item #3100 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 12" deep 40 lbs. $194.00* EA
Item #3120

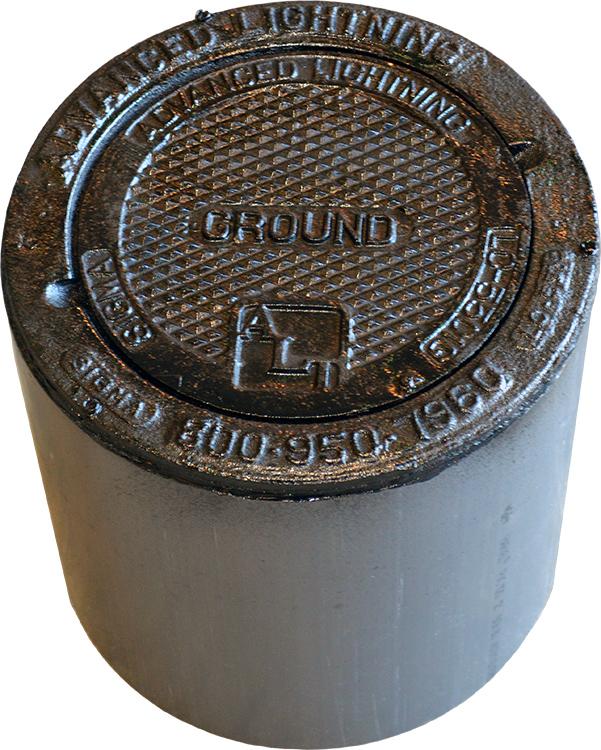

3120
Item #3120 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 18" deep 49 lbs. $233.00* EA
Item #3140

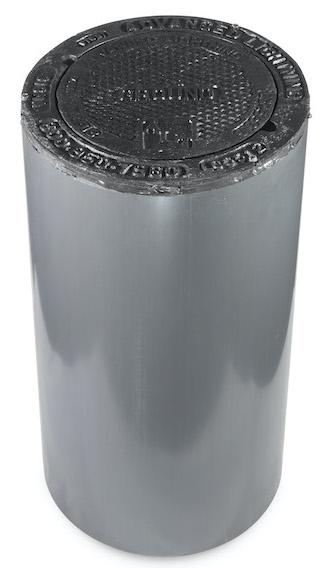

3140
Item #3140 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 24" deep 58 lbs. $272.00* EA
Item #3160
3160
Item #3160 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 36" deep 75 lbs. $350.00* EA
Item #3100-1
3100-1
Item #3100-1 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 12" deep 41 lbs. $229.00* EA
Item #3100-48
3100-48
Item #3100-48 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 48" deep 94 lbs. $428.00* EA
Item #3120-1

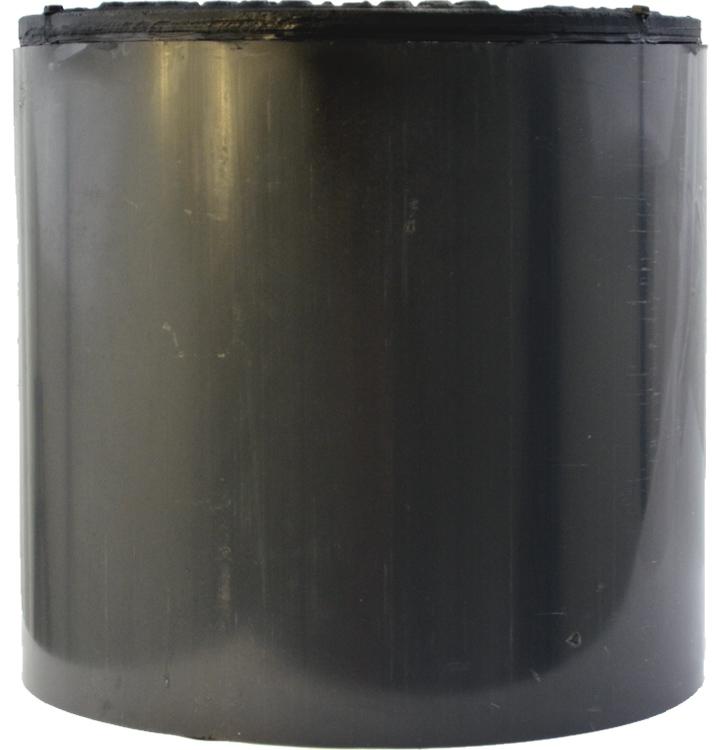

3120-1
Item #3120-1 		Test Well; Sch. 80 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 18" deep 50 lbs. $268.00* EA
Item #3140-1
3140-1
Item #3140-1 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground" with seurity bolts; H20 rated for 15,000 lbs; 12" diameter x 24" deep 59 lbs. $307.00* EA
Item #3160-1
3160-1
Item #3160-1 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 36" deep 76 lbs. $385.00* EA
Item #3102
3102
Item #3102 		Test Well; Heavy duty; Steel; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 12" deep 56 lbs. $285.00* EA
Item #3122
3122
Item #3122 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 18" deep 73 lbs. $335.00* EA
Item #3142
3142
Item #3142 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 24" deep 90 lbs. $405.00* EA
Item #3145
3145
Item #3145 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 30" deep 67 lbs. $311.00* EA
Item #3162
3162
Item #3162 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 36" deep 123 lbs. $525.00* EA
Item #3179
3179
Item #3179 		Test Well; Sch 80 PVC; Heavy duty; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 42" deep 83 lbs. $389.00* EA
Item #3102-1
3102-1
Item #3102-1 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 12" deep 57 lbs. $325.00* EA
Item #3122-1
3122-1
Item #3122-1 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 18" deep 74 lbs. $375.00* EA
Item #3142-1
3142-1
Item #3142-1 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 24" deep 91 lbs. $445.00* EA
Item #3162-1
3162-1
Item #3162-1 		Test Well; Steel; Heavy duty; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 36" deep 123 lbs. $565.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
