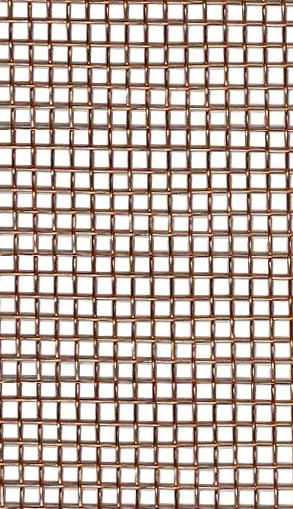

allG offers Grounding Mats that provide a convenient, effecient, and economical way to improve grounding systems at facilities where large area grounding is required. The wire mesh grounding mats are custom manufactured to your specifications, and can be constructed from solid copper clad steel, pure copper, tinned copper wire, or stainless steel. The long and cross wires of an allG ground mat are silver brazed at the crossing points. This method provides joints with a breaking strength strong enough to resist separation during installation and strong enough to bear the traffic of heavy vehicles. allG grounding mats are offered on a square foot bases. Specify length and width when placing an order.

Image Item Description Weight Price Unit Qty
3306-10SOL
Item #3306-10SOL
Grounding Mat; wire mesh, #10 solid copper; 6" centers 0.14 lbs. $7.05* SQFT
3312-8SOL
Item #3312-8SOL
Grounding Mat; wire mesh, #8 solid copper; 12" centers 0.12 lbs. $4.00* SQFT
3304-6SOL
Item #3304-6SOL
Grounding Mat; wire mesh, #6 solid copper; 4" centers 0.49 lbs. $19.00* SQFT
3306-6SOL
Item #3306-6SOL
Grounding Mat; wire mesh, #6 solid copper; 6" centers 0.33 lbs. $11.70* SQFT
3306-6SOLT
Item #3306-6SOLT
Grounding Mat; wire mesh, #6 solid tinned copper; 6" centers 0.33 lbs. $13.00* SQFT
3308-6SOL
Item #3308-6SOL
Grounding Mat; wire mesh, #6 solid copper; 8" centers 0.30 lbs. $9.10* SQFT
3312-6SOL
Item #3312-6SOL
Grounding Mat; wire mesh, #6 solid copper; 12" centers 0.16 lbs. $5.20* SQFT
3324-6SOL
Item #3324-6SOL
Grounding Mat; wire mesh, #6 solid copper; 24" centers 0.10 lbs. $2.75* SQFT

* Pricing subject to change on this item

**Product received may vary from photo
