allG Fabrication, Ltd.

Product Guide > Grounding Materials > Ground Bars & Accessories > Copper Ground Bars > Ground Bars - FAA > Ground Bars - FAA - 1/4" x 6" x 8" Copper with 1-3/4" Lug Hole

allG offers Ground Bars - FAA - 1/4" x 6" x 8" Copper with 1-3/4" Lug Hole. This bar is typically specified by the FAA and available in other sizes upon request. allG manufactured ground bars meet or exceed UL 467 standards.

Image	Item	Description	Weight	Price	Unit	Qty
	3838-1	Ground Bar; copper; clear covered; 1/4" x 6" x 8" includes insulator mounting kit	6.72 lbs.	$198.00*	EA
	3838-2	Ground Bar; copper; cover marked "MAIN GROUND PLATE"; 1/4" x 6" x 8"	5.66 lbs.	$220.00*	EA
	3838-3	1/4" x 6" x 8" Copper Ground Bar with cover marked "MULTI-POINT GROUND".	5.66 lbs.	$225.00*	EA
	3838-4	1/4" x 6" x 8" Copper Ground Bar with cover marked "SINGLE-POINT GROUND".	5.66 lbs.	$225.00*	EA

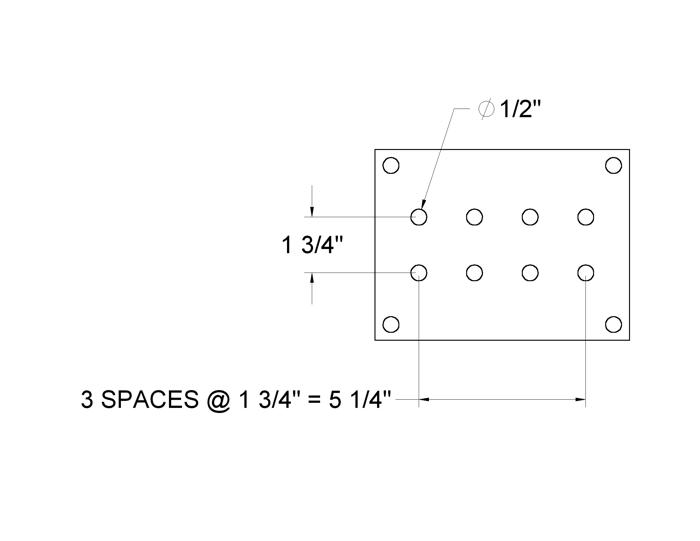

	7000-3838	Ground Bar; Copper; 1/4" x 6" x 8"; (8) 1/2" Punched lug holes on 1-3/4" centers & 1-3/4" spacing; (4) 1/2" Mount holes; Bar only	3.70 lbs.	$96.00*	EA
