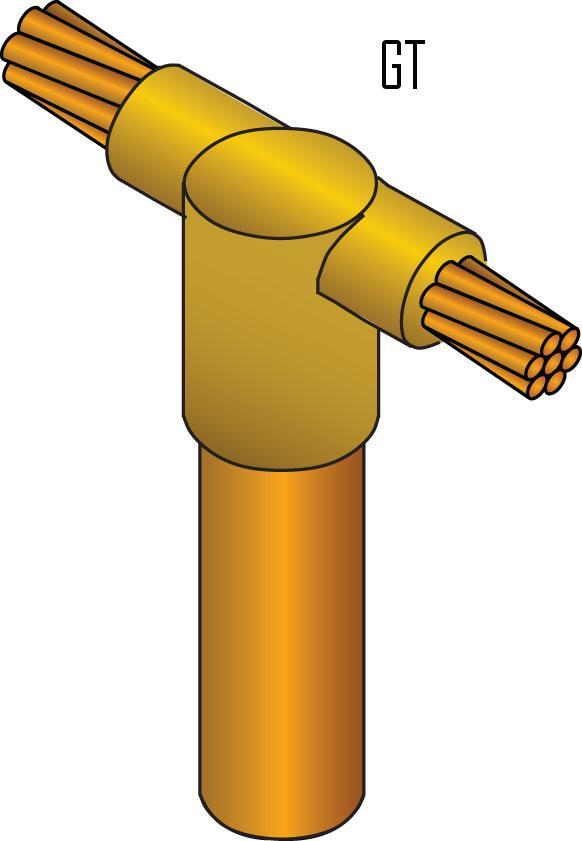

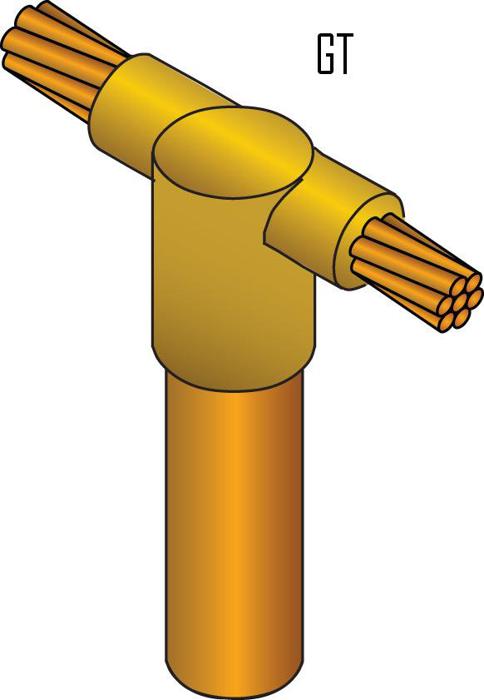

Product Guide  >  Grounding Materials  >  Cadweld Exothermic Welding  >  Cadweld Exothermic Molds  >  Cadweld Molds - Type GT

allG offers exothermic molds that are avaliable in both Cadweld and Thermoweld. Other sizes are available upon request.

See Also

Image Item Description Weight Price Unit Qty
Item #GTT-14A1G
GTT-14A1G
Item #GTT-14A1G 		Cadweld Mold; #6 Solid Horizontal Thru Top of Vertical 1/2" Steel Ground Rod; Uses WM-32 shots; Handles included; (M-8434-S) 0 lbs. $0.00* EA
Item #GTT-161G
GTT-161G
Item #GTT-161G 		Cadweld Mold; #6 Solid Horizontal Thru Top of Vertical 5/8" Copper Clad Ground Rod; Uses WM-32 shots; Handles included; (M-8441-S) 3 lbs. $160.00* EA
Item #GTC-161H
GTC-161H
Item #GTC-161H 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to #6 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (N/A) 0 lbs. $165.00* EA
Item #GTC-161L
GTC-161L
Item #GTC-161L 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to #4 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-5915) 5 lbs. $165.00* EA
Item #GTC-161V
GTC-161V
Item #GTC-161V 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to #2 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-545) 5 lbs. $165.00* EA
Item #GTC-161T
GTC-161T
Item #GTC-161T 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to #2 Solid Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (GTU-58-2S or M-545-S) 5 lbs. $165.00* EA
Item #GTC-162C
GTC-162C
Item #GTC-162C 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to 1/0 Stranded Horizontal Thru Top ; Uses WM-90 shots & L-160 handles; (M-547) 5 lbs. $165.00* EA
Item #GTC-162G
GTC-162G
Item #GTC-162G 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to 2/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (GTU-58-20 or M-548) 5 lbs. $165.00* EA
Item #GTC-162Q
GTC-162Q
Item #GTC-162Q 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to 4/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (GTU-58-40 or M-550) 5 lbs. $165.00* EA
Item #GTC-168N
GTC-168N
Item #GTC-168N 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to 28/16 Lightning Protection Conductor Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-11481) 0 lbs. $160.00* EA
Item #GTC-168C
GTC-168C
Item #GTC-168C 		Cadweld Mold; Vertical 5/8" Copper Clad Ground Rod to 29/32 Lightning Conductor Horizontal Thru Top; Uses WM-150 shots & L-160 handles; (M-5099) 5 lbs. $165.00* EA
Item #GTC-181H
GTC-181H
Item #GTC-181H 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to #6 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (N/A) 3 lbs. $165.00* EA
Item #GTC-181G
GTC-181G
Item #GTC-181G 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to #6 Solid Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (N/A) 5 lbs. $165.00* EA
Item #GTC-181L
GTC-181L
Item #GTC-181L 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to #4 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-6201) 0 lbs. $165.00* EA
Item #GTC-181V
GTC-181V
Item #GTC-181V 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to #2 Stranded Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-556) 5 lbs. $165.00* EA
Item #GTC-181T
GTC-181T
Item #GTC-181T 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to #2 Solid Horizontal Thru Top; Uses WM-90 shots & L-160 handles; (M-556-S) 5 lbs. $165.00* EA
Item #GTC-182C
GTC-182C
Item #GTC-182C 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 1/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (M-558) 5 lbs. $165.00* EA
Item #GTC-182G
GTC-182G
Item #GTC-182G 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 2/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (M-559) 5 lbs. $165.00* EA
Item #GTC-182L
GTC-182L
Item #GTC-182L 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 3/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (M-560) 5 lbs. $165.00* EA
Item #GTC-182LW
GTC-182LW
Item #GTC-182LW 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 3/0 Stranded Horizontal Thru Top with Wear Plates; Uses WM-115 shots & L-160 handles; (N/A) 0 lbs. $200.00* EA
Item #GTC-182Q
GTC-182Q
Item #GTC-182Q 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 4/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (GTU-34-40 or M-561) 5 lbs. $165.00* EA
Item #GTC-182QW
GTC-182QW
Item #GTC-182QW 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 4/0 Stranded Horizontal Thru Top with Wear Plates; Uses WM-115 shots & L-160 handles; (N/A) 6.50 lbs. $200.00* EA
Item #GTC-332Q
GTC-332Q
Item #GTC-332Q 		Cadweld Mold; Vertical Full 3/4" Steel Ground Rod to 4/0 Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (GTU-34F-40 or M-561-N) 5 lbs. $165.00* EA
Item #GTC-182V
GTC-182V
Item #GTC-182V 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 250 MCM Stranded Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (M-562) 5 lbs. $165.00* EA
Item #GTC-332V
GTC-332V
Item #GTC-332V 		Cadweld Mold; Vertical Full 3/4" Steel Ground Rod to 250 MCM Horizontal Thru Top; Uses WM-150 shots & L-160 handles; (M-562-N) 0 lbs. $160.00* EA
Item #GTC-183Q
GTC-183Q
Item #GTC-183Q 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 500 MCM Horizontal Thru Top; Uses WM-250 shots & L-160 handles; (M-566) 5 lbs. $165.00* EA
Item #GTC-188N
GTC-188N
Item #GTC-188N 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 28/16 Lightning Protection Conductor Horizontal Thru Top; Uses WM-115 shots & L-160 handles; (M-5106) 0 lbs. $160.00* EA
Item #GTC-188C
GTC-188C
Item #GTC-188C 		Cadweld Mold; Vertical 3/4" Copper Clad Ground Rod to 29/32 Lightning Protection Conductor Horizontal Thru Top; Uses WM-150 shots & L-160 handles; (M-5105) 5 lbs. $165.00* EA
Item #GTP-181H
GTP-181H
Item #GTP-181H 		Cadweld Mold; #6 Stranded Horizontal Thru Top of Vertical 3/4" Copper Clad Ground Rod; Uses WM-45 shots; Handles included; (M-8452) 3 lbs. $0.00* EA
Item #GTP-181G
GTP-181G
Item #GTP-181G 		Cadweld Mold; #6 Solid Horizontal Thru Top of Vertical 3/4" Copper Clad Ground Rod; Uses WM-45 shots; Handles included; (M-8452-S) 3 lbs. $185.00* EA
Item #GTP-181K
GTP-181K
Item #GTP-181K 		Cadweld Mold; #4 Solid Horizontal Thru Top of Vertical 3/4'' Copper Clad Ground Rod; Uses WM-65 shots; Handles included; (M-8454-S) 3 lbs. $0.00* EA
Item #GTP-331H
GTP-331H
Item #GTP-331H 		Cadweld Mold; #6 Stranded Horizontal Thru Top of Vertical 3/4" Full Size Steel Ground Rod; Uses WM-45 shots; Handles included; (M-8452-N) 0 lbs. $185.00* EA
Item #GTP-331G
GTP-331G
Item #GTP-331G 		Cadweld Mold; #6 Solid Horizontal Thru Top of Vertical 3/4" Full Size Steel Ground Rod; Uses WM-45 shots; Handles included; (M-8452-NS) 0 lbs. $185.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
