Product Guide  >  Grounding Materials  >  Chemical Ground Rods & Accesso...  >  AGE - Advanced Grounding Elect...  >  AGE - 10' Vertical

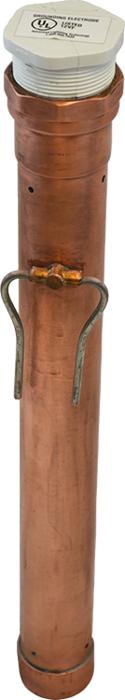

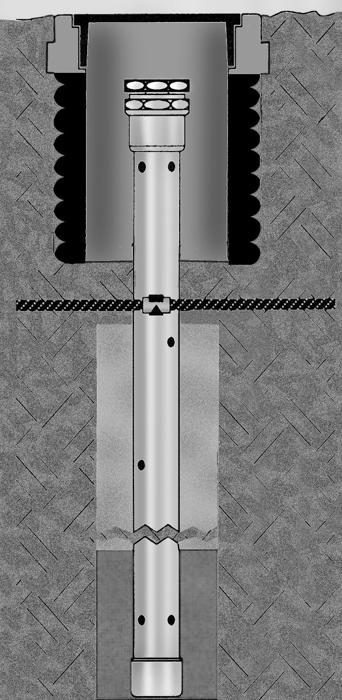

The Advanced Grounding Electrode (AGE) is an allG trademarked product. It is a chemically enhanced grounding electrode system. Each AGE kit includes the following components: 12" long, double wall, high-traffic area test well; a copper AGE electrode; a 4', exothermically welded tail; allG ground enhancement material; and specially formulated starter material. Ground Resistance Enhancement Material and Recharge Materials are also available. Special rod lengths, conductor sizes, and tail lengths are available upon request. allG manufactured chemical ground rods meet or exceed UL 467 standards.

Related Product Info

See Also

Image Item Description Weight Price Unit Qty
Item #3452
3452
Item #3452 		Vertical Advanced Grounding Electrode Kit Assembly; 4/0 bare copper tail; 10' 312 lbs. $1,570.00* EA
Item #3452-02ST
3452-02ST
Item #3452-02ST 		Vertical Advanced Grounding Electrode Kit Assembly; #2 solid tinned copper tail; 10' 312 lbs. $1,550.00* EA
Item #3452-02G
3452-02G
Item #3452-02G 		Vertical Advanced Grounding Electrode Kit Assembly; #2 stranded green insulated copper tail; 10' 312 lbs. $1,550.00* EA
Item #3452-20
3452-20
Item #3452-20 		Vertical Advanced Grounding Electrode Kit Assembly; 2/0 bare copper tail; 10' 312 lbs. $1,565.00* EA
Item #3452-30
3452-30
Item #3452-30 		Vertical Advanced Grounding Electrode Kit Assembly; 3/0 stranded copper tail; 10' 312 lbs. $1,570.00* EA
Item #3452-20T
3452-20T
Item #3452-20T 		Vertical Advanced Grounding Electrode Kit Assembly; 2/0 tinned copper tail; 10' 312 lbs. $1,570.00* EA
Item #3452-40T
3452-40T
Item #3452-40T 		Vertical Advanced Grounding Electrode Kit Assembly; 4/0 stranded tinned copper tail; 10' 312 lbs. $1,575.00* EA
Item #3452-40G
3452-40G
Item #3452-40G 		Vertical Advanced Grounding Electrode Kit Assembly; 4/0 green insulated copper tail; 10' 312 lbs. $1,575.00* EA
Item #3452-250
3452-250
Item #3452-250 		Vertical Advanced Grounding Electrode Kit Assembly; 250 MCM copper tail; 10' 312 lbs. $1,575.00* EA
Item #3452-500
3452-500
Item #3452-500 		Vertical Advanced Grounding Electrode Kit Assembly; 500 MCM copper tail; 10' 312 lbs. $1,650.00* EA
Item #3452-10
3452-10
Item #3452-10 		Vertical Advanced Grounding Electrode Kit Assembly; 1/0 stranded bare copper tail; 10' 312 lbs. $1,560.00* EA
Item #3452-168T
3452-168T
Item #3452-168T 		Vertical Advanced Grounding Electrode Kit Assembly; 168T tinned copper tail; 10' 312 lbs. $1,560.00* EA
Item #3452-168
3452-168
Item #3452-168 		Vertical Advanced Grounding Electrode Kit Assembly; 28 strands of 16 ga copper tail; 10' 312 lbs. $1,560.00* EA
Item #3452-228
3452-228
Item #3452-228 		Vertical Advanced Grounding Electrode Kit Assembly; 28 strands of 14 ga copper tail; 10' 312 lbs. $1,565.00* EA
Item #3452-02STRT
3452-02STRT
Item #3452-02STRT 		Vertical Advanced Grounding Electrode Kit Assembly; #2 stranded tinned copper tail; 10' 312 lbs. $1,550.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
