Product Guide  >  Electrical Components  >  Telco/Lock Box Enclosures & Ac...  >  Junction Boxes - NEMA 3R

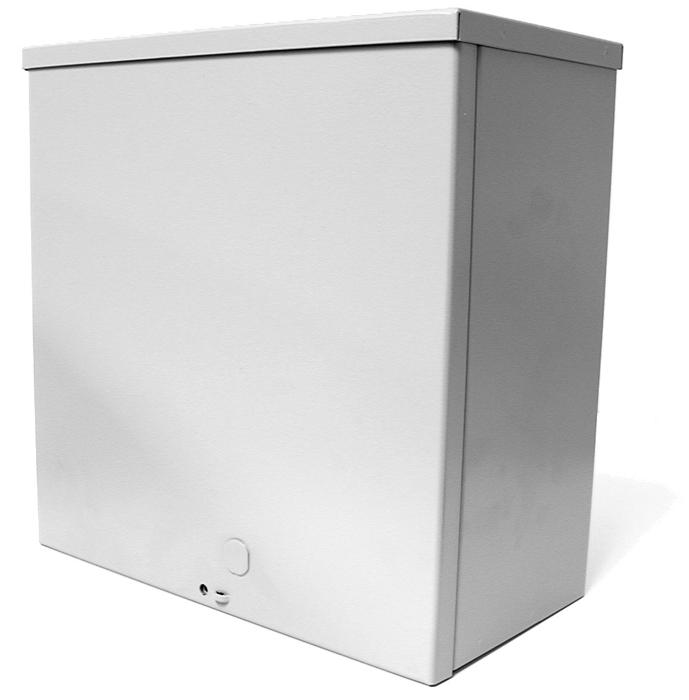

allG offers NEMA 3R Junction Boxes that are ideal for outdoor use, primarily to provide a degree of protection against falling rain or sleet. They are durable and provide protection in outdoor applications against rain, sleet and snow, or indoors against dripping water. This style of electrical enclosure can be used as a wiring box, junction box or pull box in commercial and general industrial applications requiring an industrial cabinet or NEMA enclosure. Note: Knockouts are not provided on Junction Boxes.

See Also

Image Item Description Weight Price Unit Qty
Item #5955-12x12x6
5955-12x12x6
Item #5955-12x12x6 		Junction Box; Galvanized steel; Screw cover; No knockouts; NEMA 3R rated; UL listed, Type 1; ANSI 61 gray acrylic electrocoat finish; 12" W x 12" H x 6" D 10.10 lbs. $120.00* EA
Item #5955-12x12x8
5955-12x12x8
Item #5955-12x12x8 		Junction Box; Galvanized steel; Screw cover; No knockouts; NEMA 3R rated; UL listed, Type 1; ANSI 61 gray acrylic electrocoat finish; 12" W x 12" H x 8" D 11.52 lbs. $130.00* EA
Item #5955-18x18x8
5955-18x18x8
Item #5955-18x18x8 		Junction Box; Galvanized steel; Screw cover; No knockouts; NEMA 3R rated; UL listed, Type 1; ANSI 61 gray acrylic electrocoat finish; 18" W x 18" H x 8" D 24 lbs. $310.00* EA
Item #5955-24x24x12
5955-24x24x12
Item #5955-24x24x12 		Junction Box; Galvanized steel; Screw cover; No knockouts; NEMA 3R rated; UL listed, Type 1; ANSI 61 gray acrylic electrocoat finish; 24" W x 24" H x 12" D 44 lbs. $374.99* EA

* Pricing subject to change on this item

**Product received may vary from photo
