Product Guide  >  Grounding Materials  >  Mechanical Lugs  >  Split Bolt Connectors

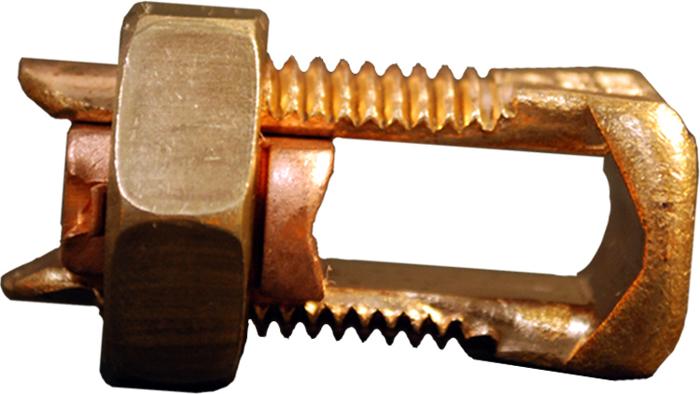

allG offers Split Bolt Connectors that are ideal for use with code conductors. They are UL Listed and CSA Certified up to 600V, with temperature ratings up to 90 degree C. They feature wire range-taking capability that minimizes inventory requirements, and a pressure bar with a secure connection for multiple conductor combinations that assures premium wire pullout strength.

See Also

Image Item Description Weight Price Unit Qty

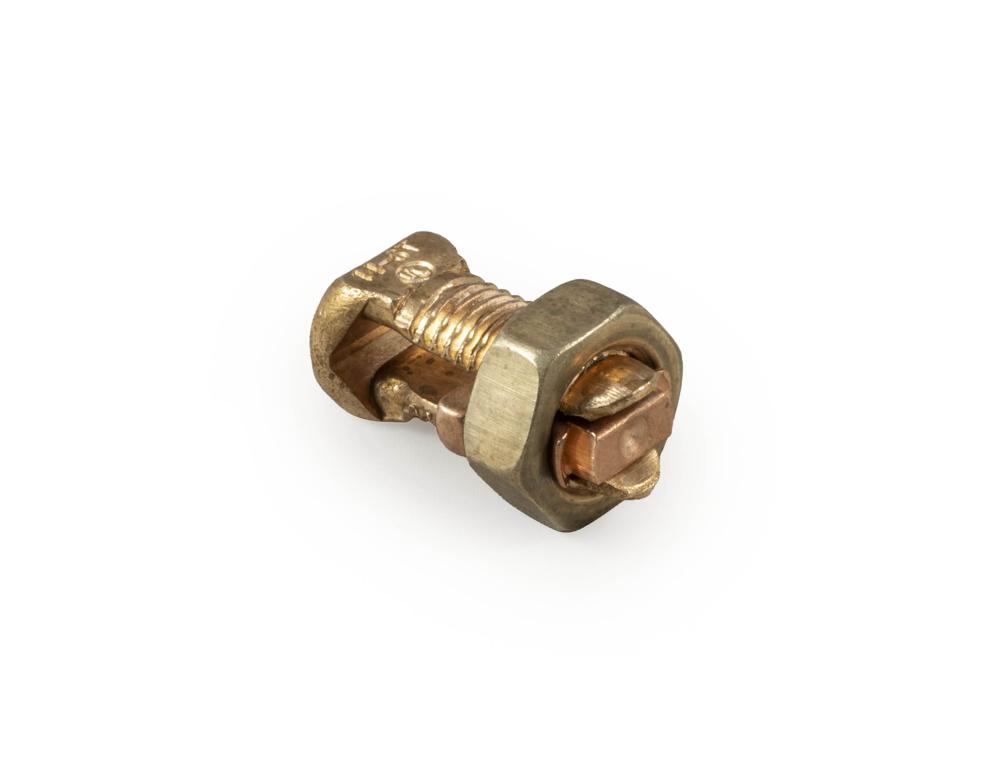

Item #961-6
961-6
Item #961-6 		Split Bolt Connector; Minimum of (2) each #8 stranded; Maximum of (2) each #6 stranded 0.10 lbs. $4.20* EA
Item #961-4
961-4
Item #961-4 		Universal Split Bolt Connector minimum of two #10 solid and a maximum of two each #4 solid aluminum or copper conductors with spacer for dissimilar metals 0 lbs. $7.20* EA

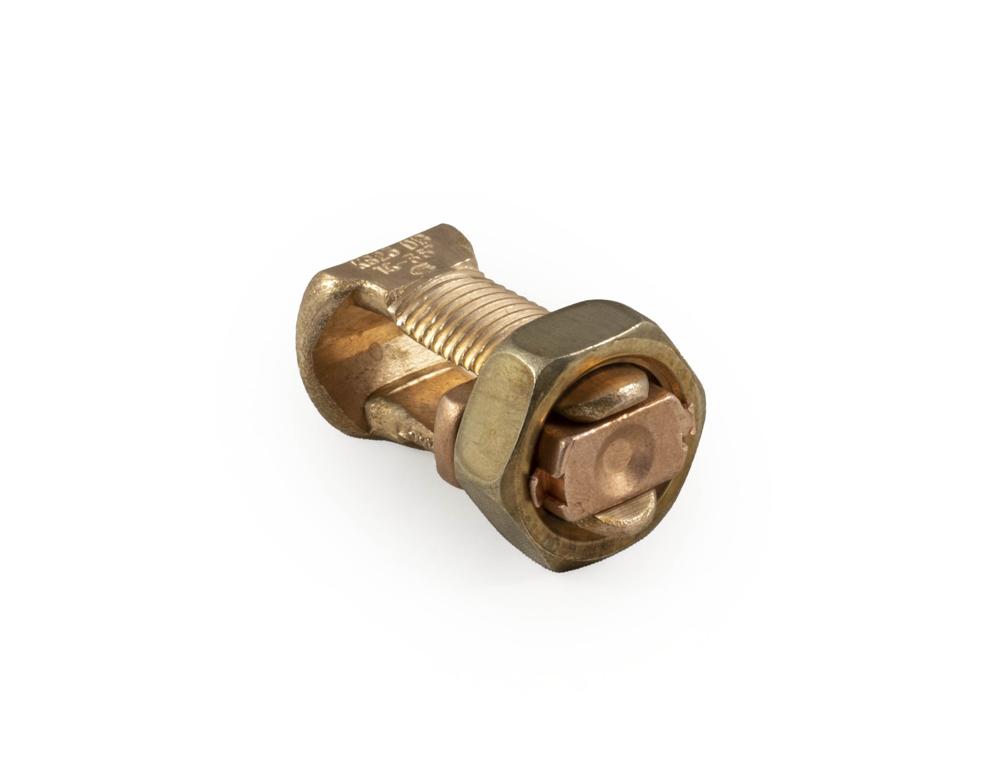

Item #961-2
961-2
Item #961-2 		Split Bolt Connector; Minimum of (2) each #6 stranded; Maximum of (2) each #2 stranded 0.10 lbs. $6.70* EA
Item #961-10
961-10
Item #961-10 		Split Bolt Connector; Minimum of (2) each #4 stranded; Maximum of (2) each 1/0 stranded 0 lbs. $10.80* EA
Item #961-20
961-20
Item #961-20 		Split Bolt Connector; Minimum of (2) each #2 solid; Maximum of (2) each 2/0 stranded 0.20 lbs. $12.80* EA
Item #961-30
961-30
Item #961-30 		Split Bolt Connector; Minimum of (2) each #1 stranded; Maximum of (2) each 3/0 stranded 0.40 lbs. $14.00* EA

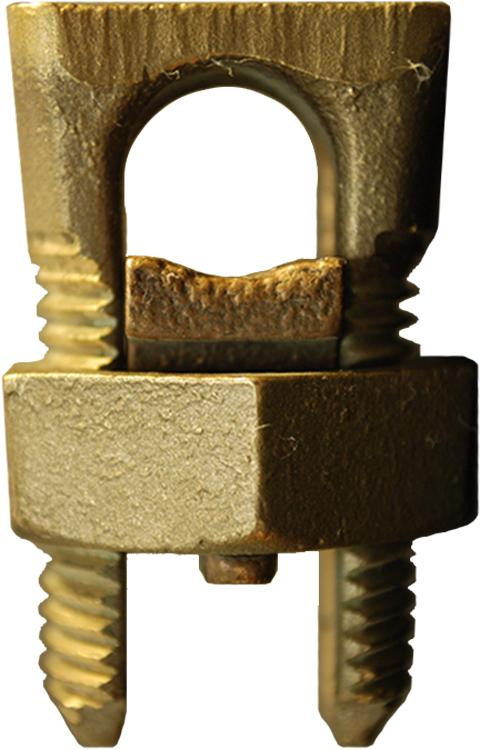

Item #961-250
961-250
Item #961-250 		DISCONTINUED Split Bolt Connector; Minimum of (2) each #1 stranded; Maximum of (2) each 250 MCM stranded 0.40 lbs. $21.40* EA
Item #961-500
961-500
Item #961-500 		Split Bolt Connector; Minimum of (2) each 2/0 stranded; Maximum of (2) each 500 MCM stranded 0.80 lbs. $48.00* EA
Item #961-750
961-750
Item #961-750 		Split Bolt Connector; Minimum of (2) each 4/0 stranded; Maximum of (2) each 750 MCM 1.70 lbs. $86.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
