Product Guide  >  Grounding Materials  >  Test Wells  >  Test Wells - Heavy Duty High Traffic Area

The allG Heavy Duty, High Traffic Area Test Wells are constructed from PVC, steel, or concrete. Each test well comes with a cast iron lid marked "Ground" and has a cast iron ring for support. Lids with security bolts may be ordered by adding the suffix "-1" when ordering. The test well is H20 load rated with PVC being rated for 13,000 pounds, steel rated at 9,000 pounds, and concrete being rated for 36,000 pounds. Other lengths are available upon request.

Image Item Description Weight Price Unit Qty

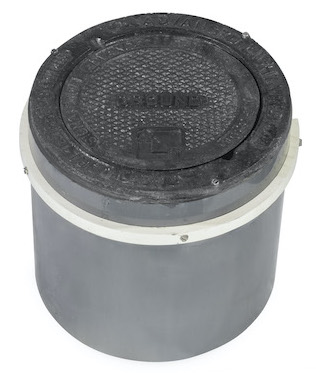

Item #3110
3110
Item #3110 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 15,000; 12" diameter x 12" deep 41 lbs. $214.00* EA

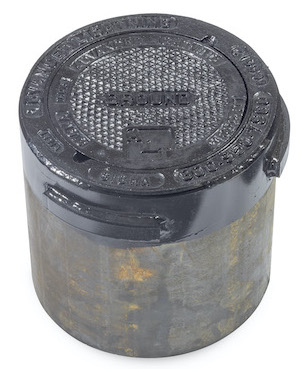

Item #3112
3112
Item #3112 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground"; H20 rated for 9000; 12" diameter x 12" deep 59 lbs. $315.00* EA

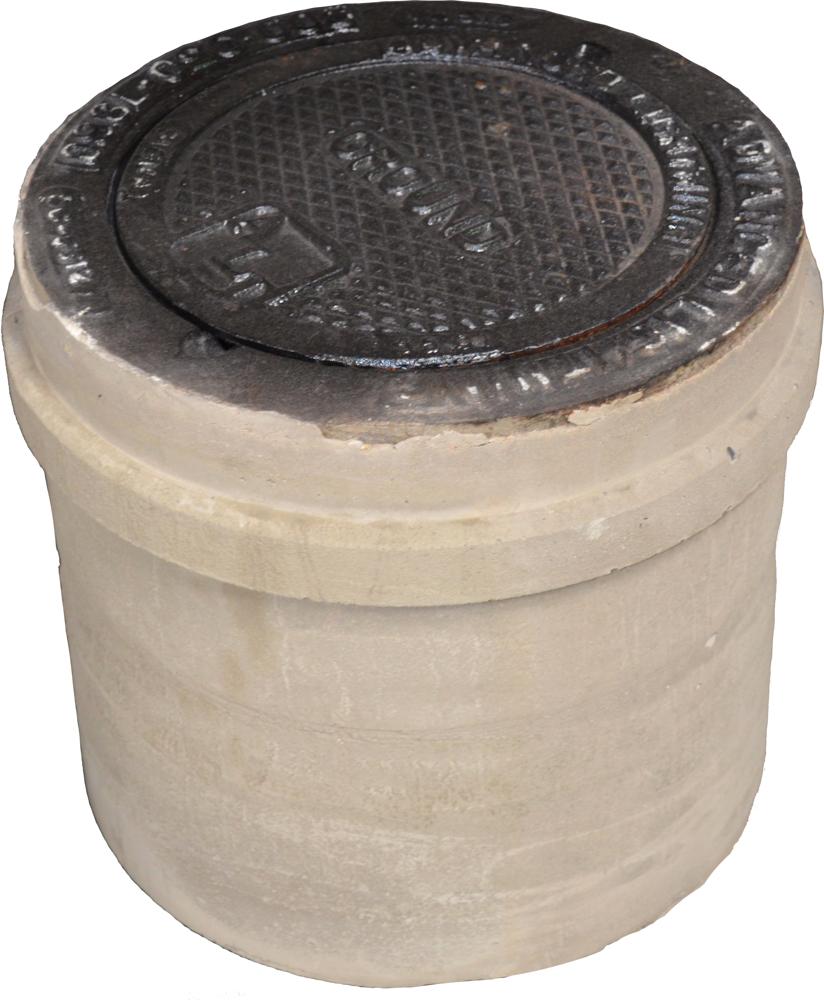

Item #3114
3114
Item #3114 		Test Well; Concrete; High traffic area; Cast iron cover marked "Ground"; H20 rated for 36,000 lbs; 12" diameter x 12" deep 63.30 lbs. $145.00* EA

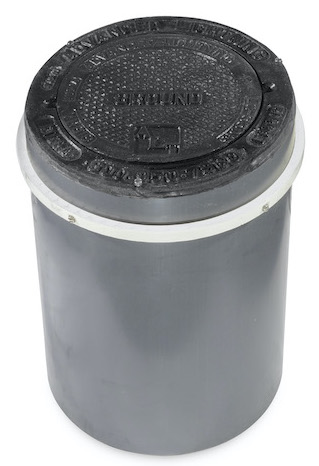

Item #3130
3130
Item #3130 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 18" deep 50 lbs. $253.00* EA
Item #3132
3132
Item #3132 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 18" deep 76 lbs. $365.00* EA
Item #3150
3150
Item #3150 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 24" deep 59 lbs. $292.00* EA
Item #3152
3152
Item #3152 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 24" deep 93 lbs. $435.00* EA
Item #3165
3165
Item #3165 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 30" deep 68 lbs. $331.00* EA

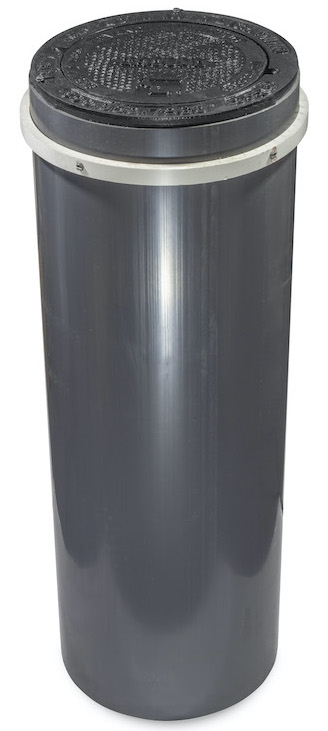

Item #3170
3170
Item #3170 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 36" deep 77 lbs. $370.00* EA
Item #3172
3172
Item #3172 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground"; H20 rated for 9000 lbs; 12" diameter x 36" deep 126 lbs. $555.00* EA
Item #3175
3175
Item #3175 		Test Well; Sch 80 PVC; High traffic areal; Cast iron cover marked "Ground"; H20 rated for 15,000 lbs; 12" diameter x 42" deep 84 lbs. $409.00* EA
Item #3110-1
3110-1
Item #3110-1 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground" with security bolst; H20 rated for 15,000; 12" diameter x 12" deep 42 lbs. $249.00* EA
Item #3112-1
3112-1
Item #3112-1 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000; 12" diameter x 12" deep 60 lbs. $349.00* EA

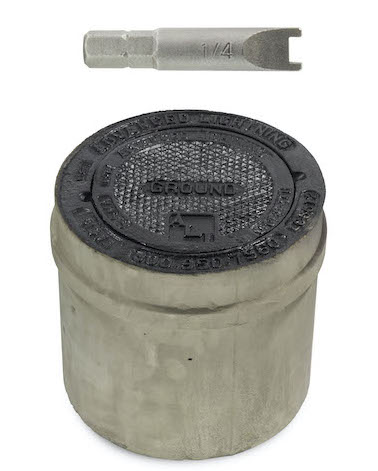

Item #3114-1
3114-1
Item #3114-1 		Test Well; Concrete; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 36,000 lbs; 12" diameter x 12" deep 63.30 lbs. $185.00* EA
Item #3130-1
3130-1
Item #3130-1 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 18" deep 51 lbs. $288.00* EA
Item #3132-1
3132-1
Item #3132-1 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 18" deep 77 lbs. $399.00* EA
Item #3150-1
3150-1
Item #3150-1 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 24" deep 60 lbs. $327.00* EA
Item #3152-1
3152-1
Item #3152-1 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 24" deep 94 lbs. $475.00* EA
Item #3170-1
3170-1
Item #3170-1 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 36" deep 78 lbs. $405.00* EA
Item #3172-1
3172-1
Item #3172-1 		Test Well; Steel; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 9000 lbs; 12" diameter x 36" deep 126 lbs. $595.00* EA
Item #3175-1
3175-1
Item #3175-1 		Test Well; Sch 80 PVC; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 15,000 lbs; 12" diameter x 42" deep 85 lbs. $444.00* EA

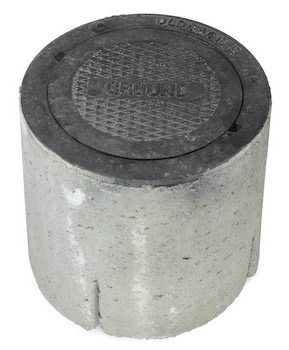

Item #3114USA
3114USA
Item #3114USA 		Test Well; Concrete; High traffic area; Cast iron cover marked "Ground"; H20 rated for 36,000 lbs; 12-1/2" diameter x 12" deep; Made in the USA 74 lbs. $253.00* EA
Item #3114USA-1
3114USA-1
Item #3114USA-1
Test Well; Concrete; High traffic area; Cast iron cover marked "Ground" with security bolts; H20 rated for 36,000 lbs; 12-1/2" diameter x 12" deep; Ma... (see more)
 86 lbs. $288.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
