Product Guide  >  Grounding Materials  >  Ground Bars & Accessories  >  Ground Bar Accessories  >  Insulators - Poly Thermoset

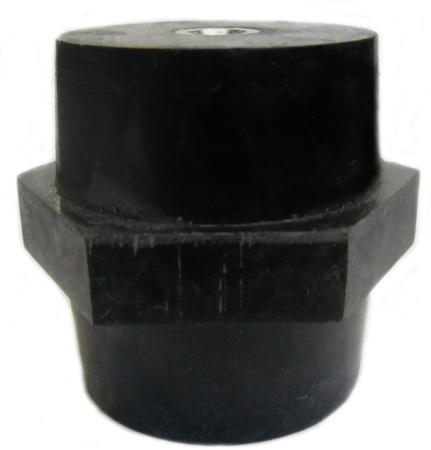

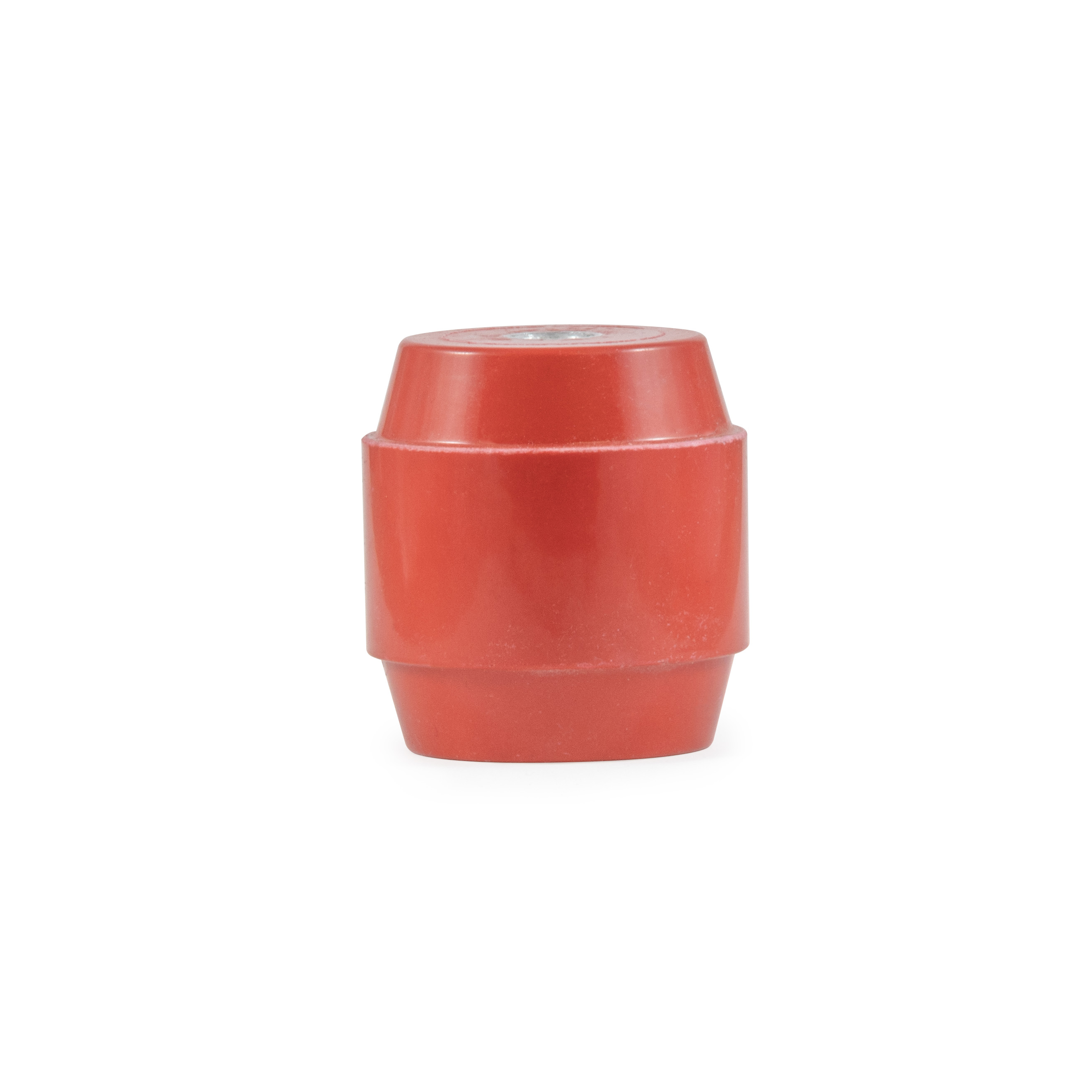

allG offers Poly Thermoset Insulators that are cost-effective, offer great stability of electrical and mechanical parameters, and high resistance to leakage current. They are manufactured from a halogen free, fiberglass reinforced thermalset, unsaturated polyester molded compound (BMC), and the electroplated zinc inserts are threaded to ASME standards.

Image Item Description Weight Price Unit Qty

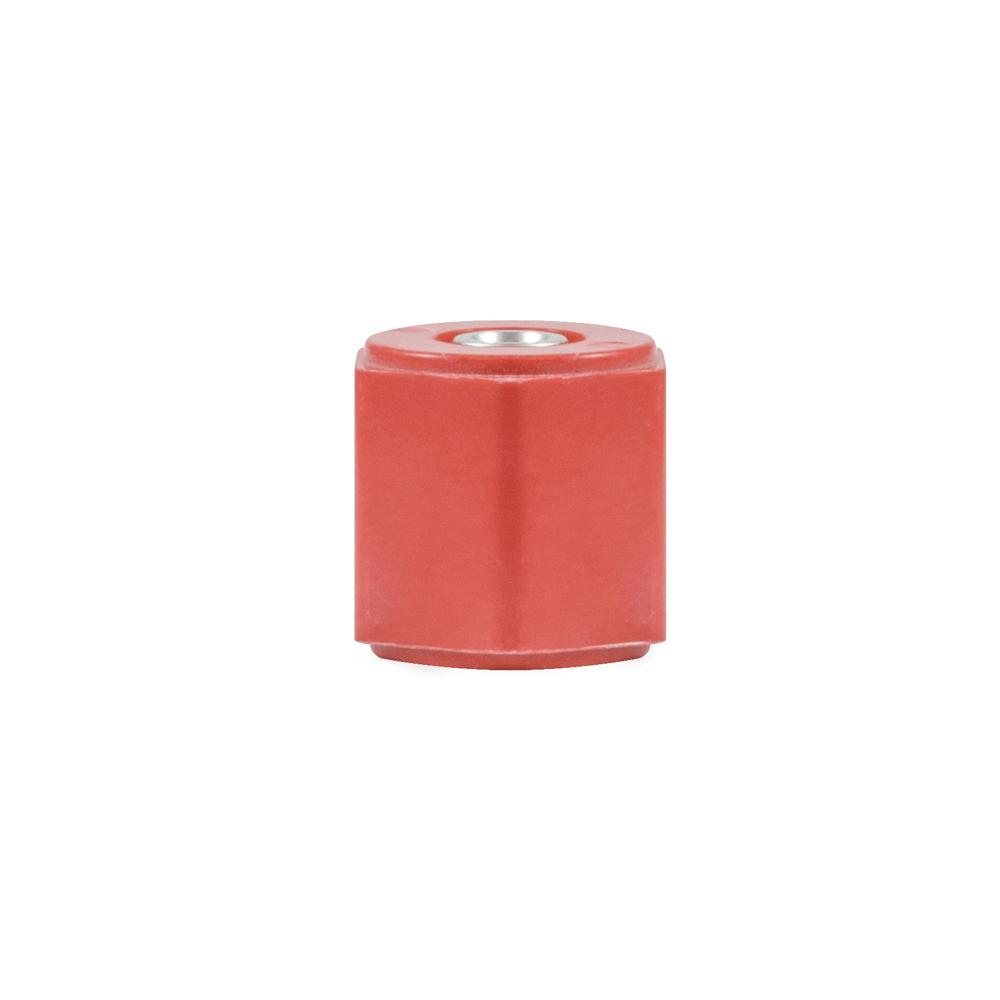

Item #3872
3872
Item #3872 		Poly Insulator; Small; 1/4" threads; 1" height; 1" width; 5/16" thread depth; 600 voltage AC 0.06 lbs. $3.40* EA
Item #3872-114
3872-114
Item #3872-114 		Poly Insulator; small; 1/4" threads; 1-1/4" height; 1-5/8" width; 5/16" thread depth; 750 voltage AC 0.12 lbs. $4.00* EA
Item #3870
3870
Item #3870 		Poly Insulator; Standard; 3/8" threads; 1-7/8" height; 1-3/4" width; 9/16" thread depth; 2000 voltage AC 0.35 lbs. $7.20* EA

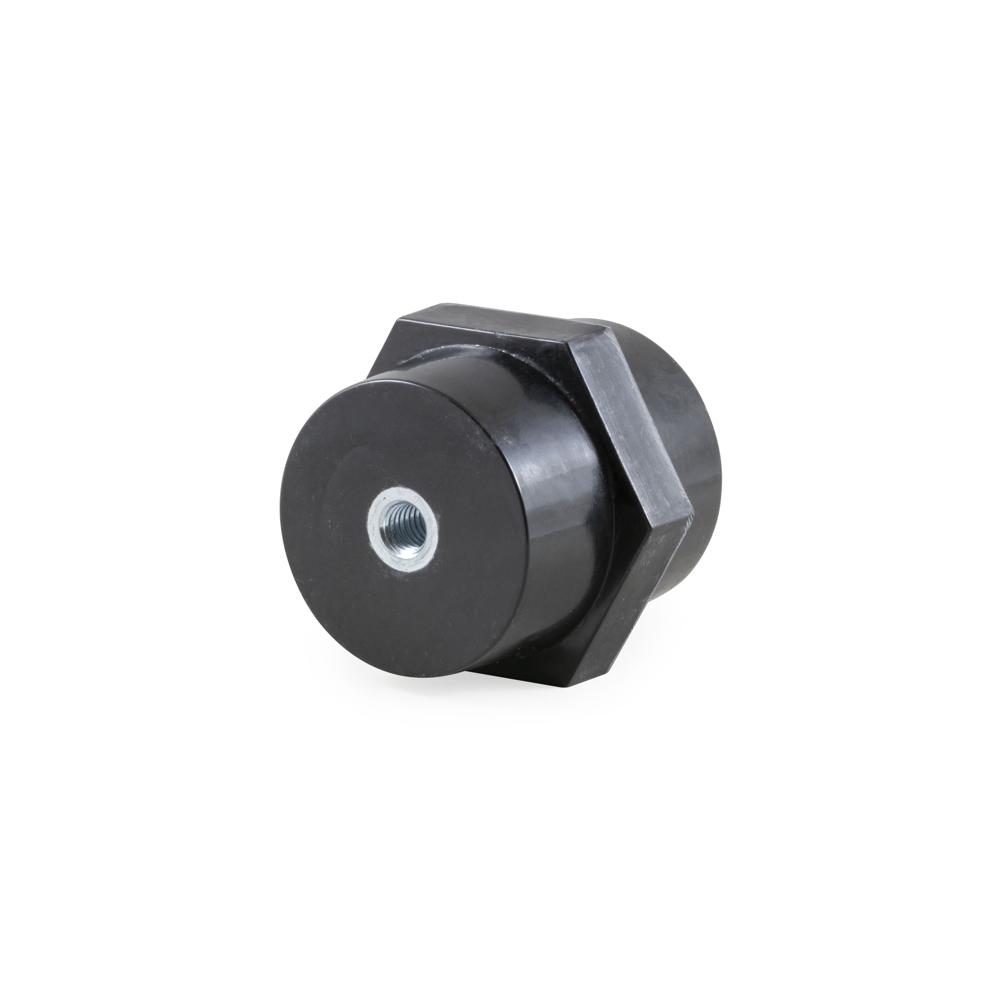

Item #3868
3868
Item #3868 		Poly Insulator; Large; 3/8" threads; 2-1/2" height; 2-1/2" width; 5/8" thread depth; 3200 voltage AC 0.72 lbs. $13.50* EA
Item #3869
3869
Item #3869 		Poly Insulator; Large; 1/2" threads; 2-1/2" height; 2-1/2" width; 5/8" thread depth; 3200 voltage AC 0.75 lbs. $13.50* EA

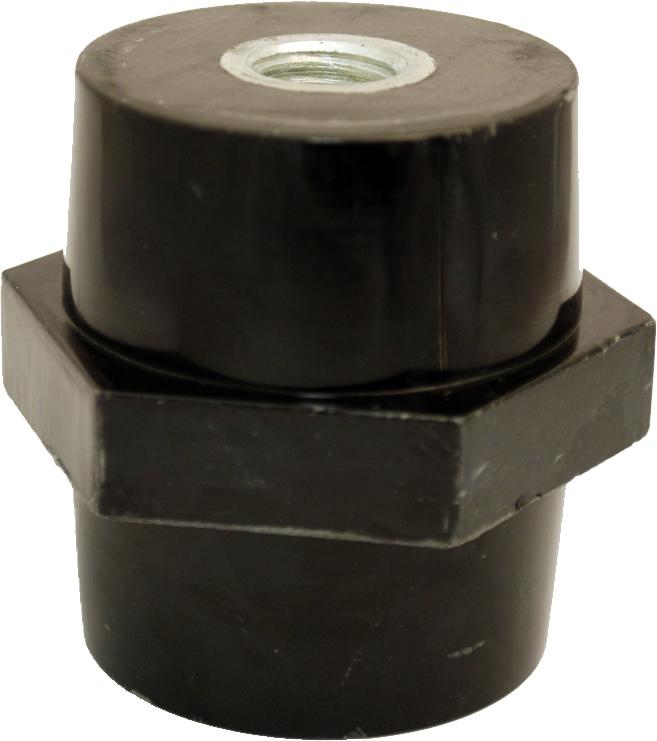

Item #3873
3873
Item #3873 		Poly Insulator; Large; 5/8" threads; 2-5/8" height; 2-1/2" width; 3/4" thread depth; 3400 voltage AC 0.86 lbs. $12.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
