Product Guide  >  Grounding Materials  >  Ground Receptacles & Accessori...  >  Ground Plates - Flush Floor

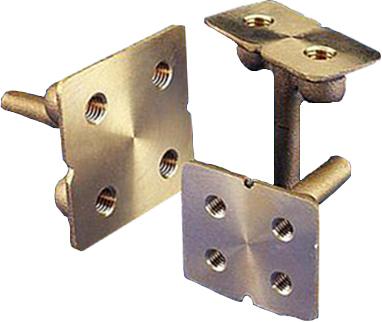

allG offers Flush Floor Ground Plates that are cast bronze and accepts 1-3/4" NEMA lugs. Requires 4/0 Exothermic Mold for connection to cast stud.

See Also

Image Item Description Weight Price Unit Qty

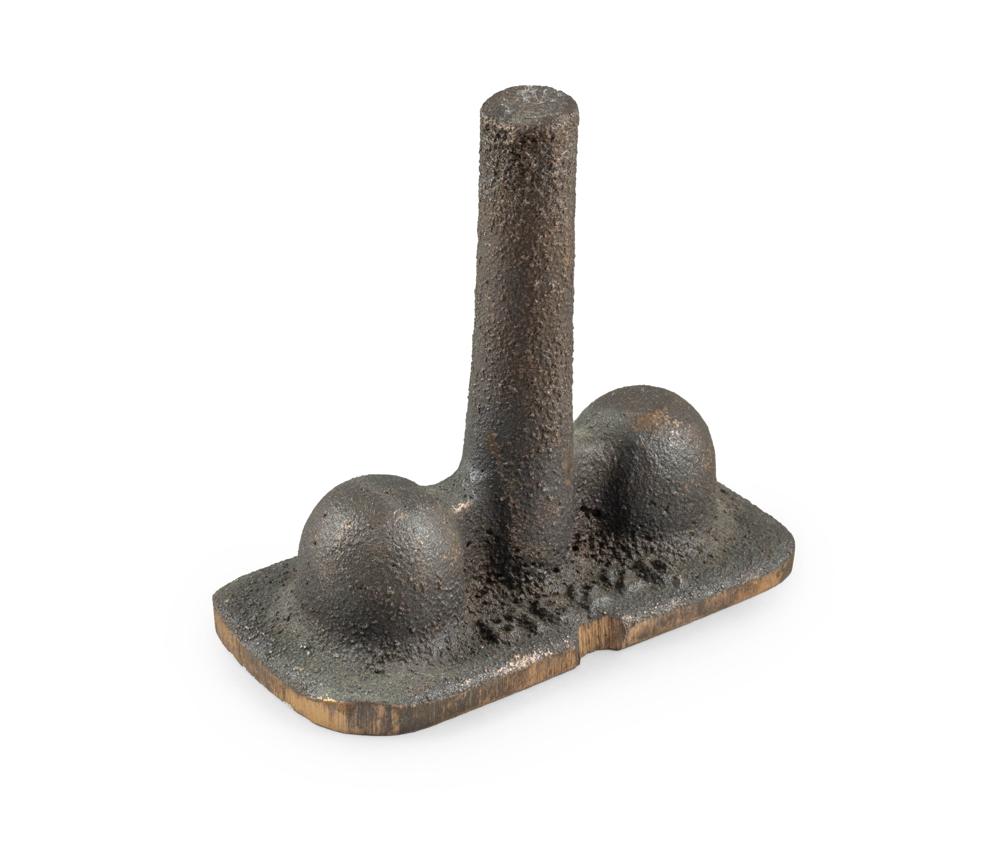

Item #B162-2Q
B162-2Q
Item #B162-2Q 		Ground Plate; (2) tapped holes on 1-3/4'' spacing; 4/0 stud 0.72 lbs. $66.25* EA
Item #B161-2Q
B161-2Q
Item #B161-2Q 		Ground Plate; (4) 3/8" tapped holes on 1" spacing; 4/0 stud 1.05 lbs. $78.00* EA
Item #B161-2QT
B161-2QT
Item #B161-2QT 		Ground Plate; Tinned; (4) 3/8" tapped holes on 1'' spacing; 4/0 stud 1.05 lbs. $67.00* EA

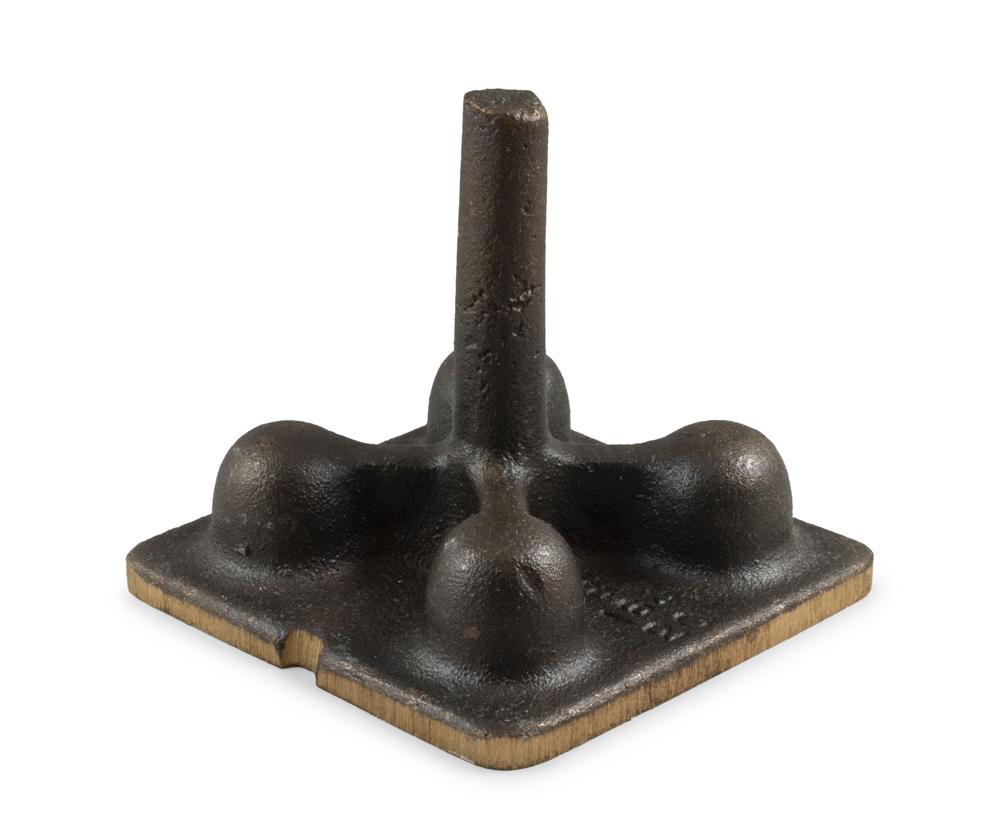

Item #B164-2Q
B164-2Q
Item #B164-2Q 		Ground Plate; (4) 1/2" tapped holes on 1-3/4" spacing; 4/0 stud 1.42 lbs. $112.50* EA

* Pricing subject to change on this item

**Product received may vary from photo
